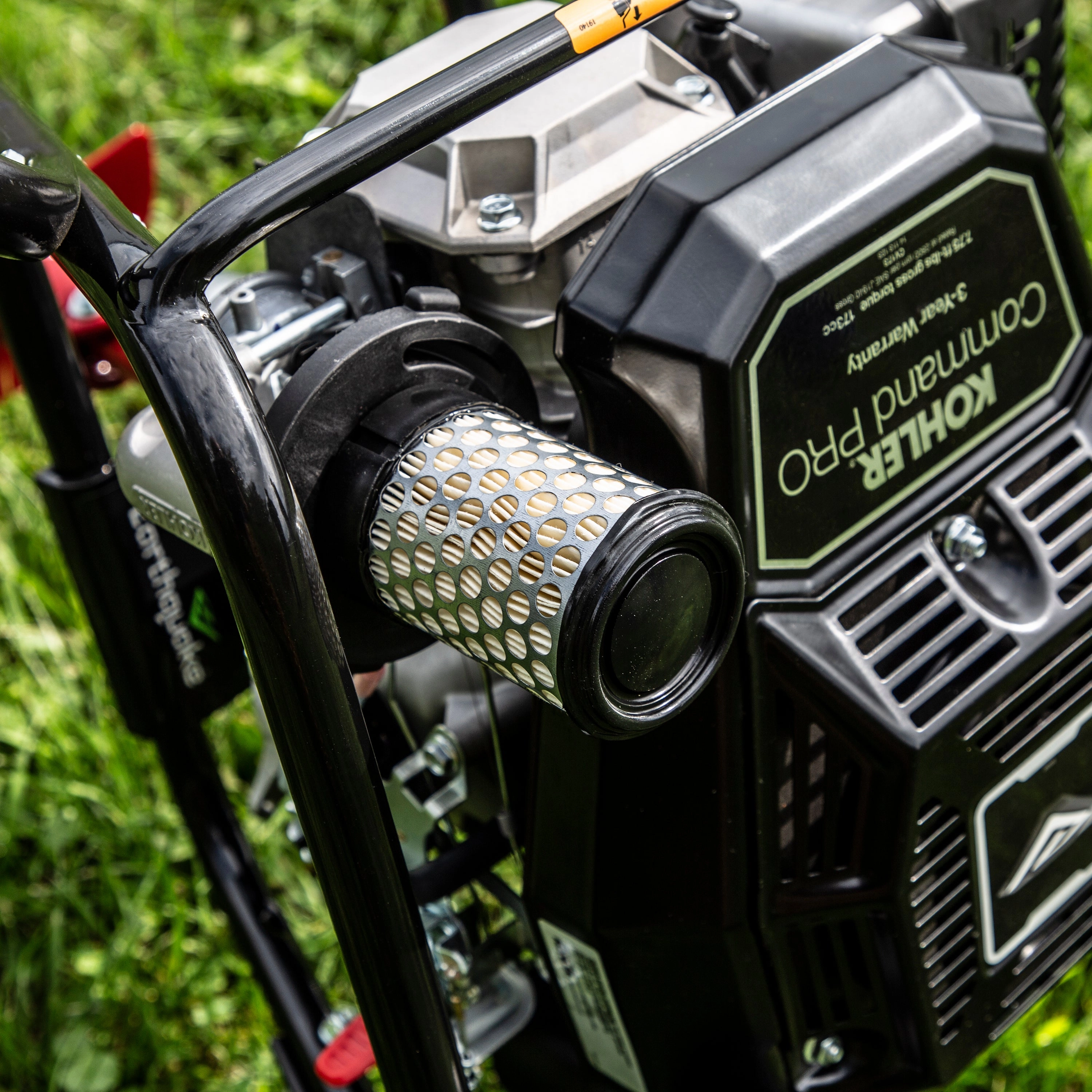

173cc 4-Cycle Kohler Command Pro Engine
2-person operation
Steel handlebars protect the engine

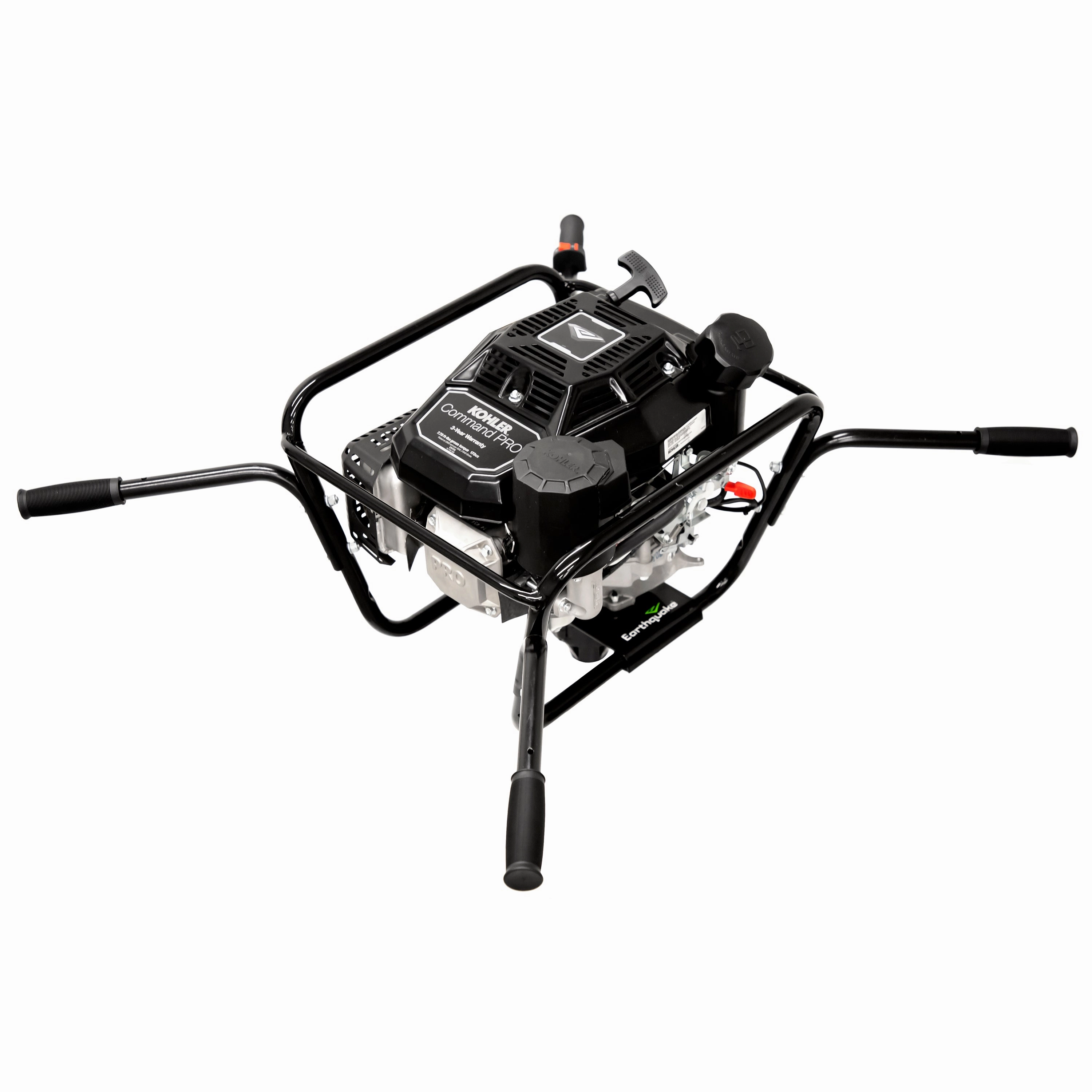

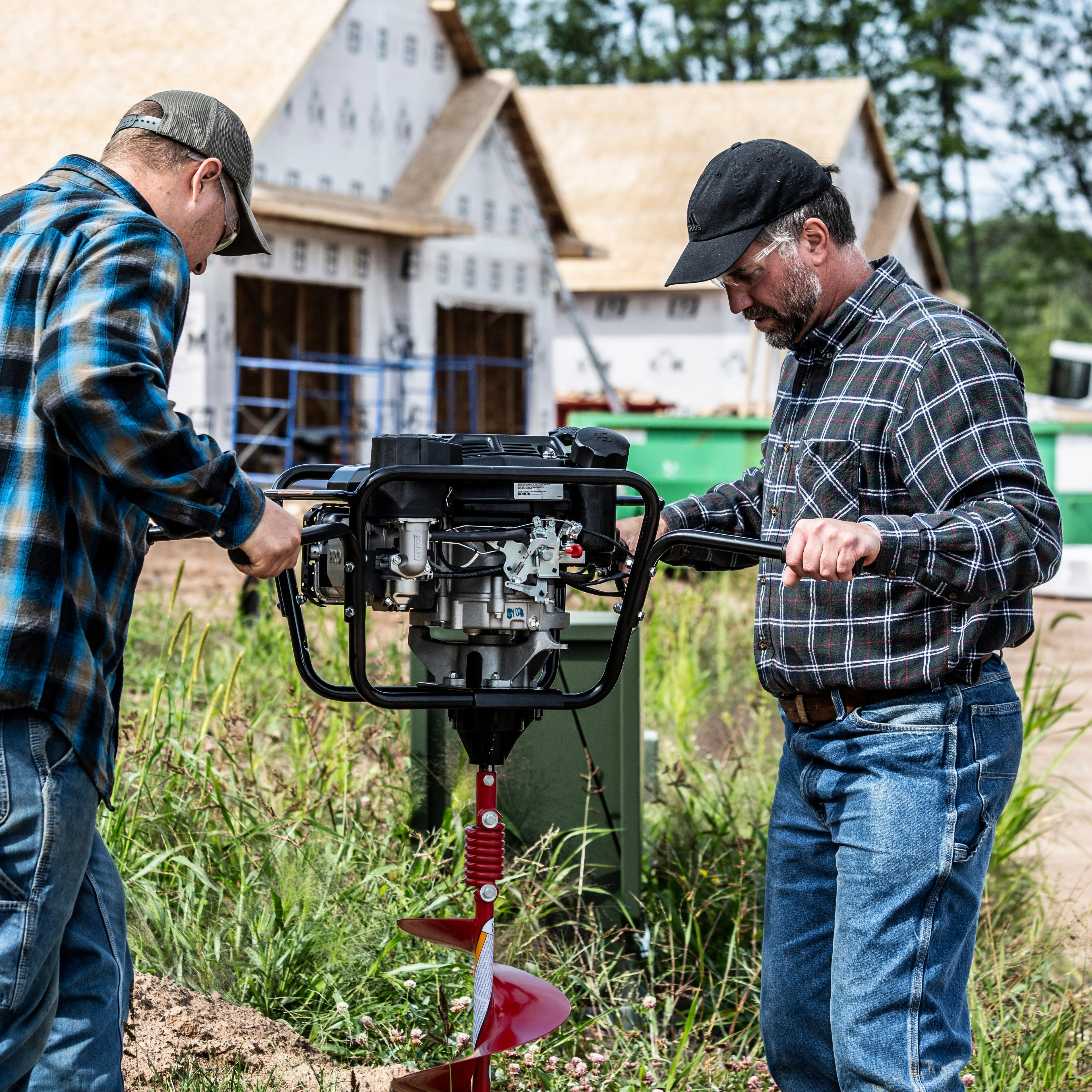

The Earthquake 2-Person Earth Auger with commercial grade Kohler engine is designed for serious hole drilling jobs. The two-person earth auger powerhead packs maximum power with a 173cc Kohler Command Pro Engine. The solid steel. heat-treated alloy gears and the heavy-duty clutch are built to last in the toughest conditions. The Kohler Engine is protected by a welded steel cage that surrounds the unit. designed to resist the unavoidable impacts that come with being used at a construction site. Wide handlebars mounted in the right position provide you with leverage and control when drilling your hole. This heavy-duty unit 2-person earth auger is able to tackle a wide range of soils and digs a hole up to 14 Inch in diameter with exceptional control. allowing you to do the work faster. easier and with more reliability. It is perfect for fencing. planting trees and other projects at the home or on the job site.
Specifications
| Specification | Details |
|---|---|
| Model | 40774 |
| Owners Manual | 40774 Manual |
| Adapter Included | No |
| Auger Bit Included | No |
| Auger Connection | Through Bolt |
| Certifications | CARB PHASE III. EPA PHASE III. EU STAGE V. CHINA PHASE II |
| Engine Brand | Kohler |
| Engine Displacement | 173cc |
| Engine Type | 4-Cycle |
| Fuel Tank Capacity | 0.3 GAL |
| Fuel Type | 87 Octane Unleaded Gasoline |
| Gear Ratio | 30:1 |
| Gross Weight | 60 lbs |
| Number of Operators | 2 |
| Net Weight | 55 lbs |
| Number of Speeds | Variable |
| Oil to Fuel Mixture | N/A |
| Operational Auger Speed | 128 RPM |
| Output Shaft Bolt Size | 3/8 |
| Output Shaft | 7/8 Smooth Shaft |
| Output Power | 232 ft-lb |
| Recommended Oil | SAE 10W-30 |
| Start Type | Recoil |
| Torque Reduction and Transport Accessory Compatible | No |
| Transmission | Ball Bearing. Alloy Steel Gear Driven |
| Warranty | 5-Year Limited Product.3-Year Limited Engine |
| Patent # |
