Description

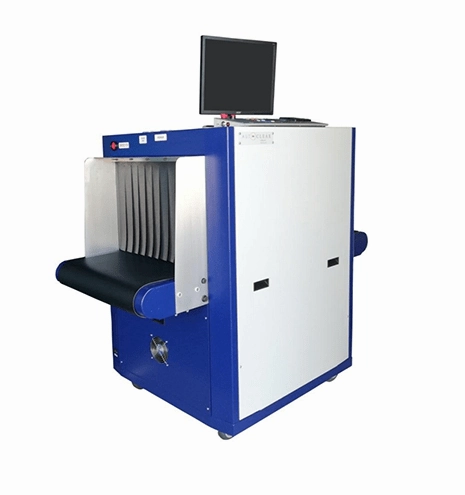

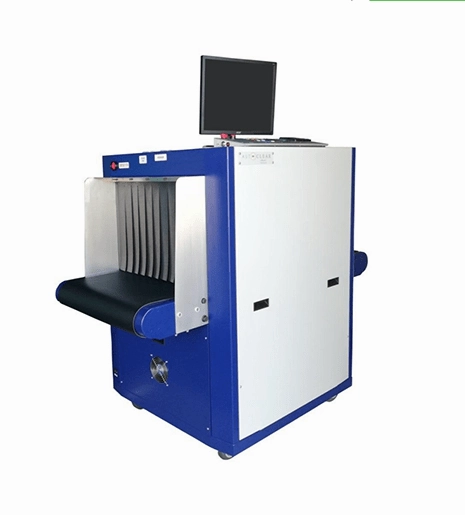

The user-friendly 6040DVS delivers best-in-class speed and detection capability and makes the most of available space. This single-source. dual-energy system is designed to screen small- to mid-sized items for weapons. explosives. drugs and other contraband. The right size for scanning strollers. briefcases. backpacks. purses and other hand-carried items. this compact workhorse is ready to meet the toughest throughput demands.

The system's low profile. bottom-up generator design makes fine lines appear much sharper and larger on-screen. With a trim footprint. the user-friendly 6040DVS delivers best-in-class speed and detection capability even where space is limited.

The single-source. multi-energy 6040 X-ray inspection system is designedto screen small- to mid-sized items for weapons. explosives. drugs and othercontraband. The right size for scanning strollers. briefcases. backpacks. pursesand other hand-carried items. this powerful scanner is small enough to fit inelevators. narrow halls and tight spaces. The user-friendly 6040 delivers best -in - class speed and detection capability and makes the most of available space. Rapidly images full mailbags and long or tall items Fits in elevators. narrow halls and tight spaces Patented guided conveyor belt never needs adjusting

Artificial Intelligence- 'AI-Threat Asist' intelligence generated by algorithmic analysis of threat detection utilizing 'machine learning'. Autoclear's 'AI-Threat Asist' significantly increases the accuracy of identification and detection of threats in scanned parcels. A profoundly more secure and effective method of detecting knives. guns. bombs etc. The difference between an AI X-ray scanner and a non-AI scanner is inescapable. No longer. are just the eyes of the scanner operator determinant if a 'threat' has been detected. Truly. Autoclear provides new 'game changing' technology to ensure scientifically accurate threat detection. Please see screen shot below. Automatically a bright box or other structure is placed around the threat and may be accompanied by an audio/text alert. The 'AI-Threat Asist' feature helps ensure that stressed operators in a demanding environment have a new and powerful technological advantage with Autoclear 'AI-Threat Assist'. A 'second set of eyes' and more powerful are there to increase safety!

Features

• Fits in elevators. narrow halls and tight spaces
• Patented guided conveyor belt never needs adjusting
• Built on the industry's most stable and flexible operating system

Aperture Size

62.0 x 42.0 cm
24.4 x 16.5 in

OVERALL DIMENSIONS

154.6 x 80.9 x 126.4 cm
60.9 x 31.9 x 49.8 in.

WEIGHT

352 KG
775 LBS

6040 SPECIFICATIONSPHYSICAL DETAILS:

Tunnel Size:

62.0 x 42.1 cm24.4 x 16.5 in.(W x H)

Dimensions:

156.1 x 82.6 x 127.3 cm61.5 x 32.5 x 50.1 in. (L x W xH)

VIDEO:

19 color LCD monitor. 1280 x 1024 video card
STANDARD FEATURES

Weight:

353 kg (778 lbs.) uncrated
413 kg (910 lbs.) crated

Construction:

New DVS Frame heavy gauge epoxypainted steel construction with stainless steel and aluminum trim andaccessories; non-marking casters

Temperature Operating:

15 to 55C (5 to 131F)

Storage:

-20 to 60C (-4 to 140F)

Humidity:

20% to 95%. non-condensing

Power Consumption:

0.8 kVA; 8 amps 100. 120 volts AC10%; 4 amps 200. 220. 230. 240. 250volts AC 10%. all at 50 or 60 Hz

X-RAY GENERATOR:

X-ray Tube Head: Self-contained with sealed oil bath cooling
High Voltage Rating: 160 kV. operating at 140 kV
Duty Cycle: 100%
Beam Orientation Diagonal (80 beam divergence)
Dose per Exam: 0.1 mR (1 Sv)

INSPECTION CAPABILITIES:

Material Penetration

2829 mm (1.101.14 in.) steel

Contrast Sensitivity:

Over 2 million color tones standard

Resolution:

3840 AWG wire

Processing:

32-bit adaptive image processing with
minimum 1 Gbytes memory; 2.2GHz
dual core processor; video processingusing next generation graphicalprocessing unit architecture with 550MHz GPU clock. 512Mbyte video memory and

autoSoft operating system
Full-size operator controlpanel (OCP) with touchpadnavigation
autoTracking guided conveyorbelt system
Reversible conveyor direction
High/low density stripping
Organic/inorganic stripping
Color; reverse B/W imaging
Interactive help screens
128x Smart Zoom
Adjustable zoom previewwindow

OPTIONS:

• Loading or exit rollerbeds
• Conveyor extensions
• Tunnel extensions
• Tropical humidity kit
• DVD drive
• autoMatAlert2
• autoZ display1
• Image archiving2
• Threat image projection (TIP)1
• Built-in training1
• Level 1 networking
• Level 2 and 3 networking1
• User management2
• STI Viewer software forarchived image analysis
• Locking metal OCP coverD-SCAN
• Dark and light enhance
• RealClear
• autoDensAlert
• autoOutline
• autoSensing
• autoScale
• autoCal
• autoImage recall (10 images)
• Z-SCAN
• Save screen to USB
• Variable height OCP mount
• Dual and larger monitors
• Locking monitor garage
• Laser printer
• Console desk
• kV. mA meter
• Uninterruptible power supply
• Optical X-ray on/off sensor
• Footpad
• CE/CSA/ETL compliance2
• Item counter1
• Lighted E-Stops2
• 32 stream processing cores

Conveyor Speed:

24 cm (9.4 in.) per second
14.6 m (48 ft.) per minute

Pulling Weight:

160 kg (352 lbs.) with higherweights available

Film Safety:

Guaranteed for high-speed film upto ISO 1600 (33 DIN)

DETECTORS:

High-speed. ultra-sensitive photodiode detector array; L-shaped for 100% object screening 1 Not an option with TSA air cargo screening configuration 2 Standard with TSA air cargo screening configuration onlyX-RAY INSPECTION NOTE: Non-marking casters. Dimensions are in centimeters.
