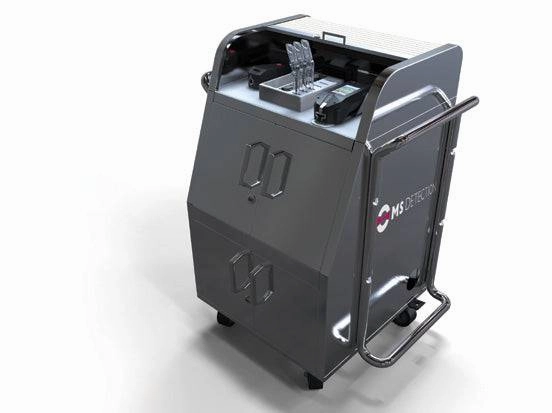

Desktop Explosives and Narcotics Trace and Vapor Detector
Both Explosive & Narcotics Detection Devices
Building on the exceptional capabilities and innovative HF-QCM Sensor Technologies. DUOSCANis the most rugged. portablenarcotics and contraband detector on the market. Easy-to-operate. robust and highly resistant to environmental conditions.DUOSCANis able to detect and identify a broader range ofnarcoticsthreatswhile maintaining the highest level of sensitivity and selectivity
Feature Highlights
- Multiple sensors (orthogonal techniques) working together in one instrument
- Advanced software developed to interpret results of multiple sensor technologies
- Non-radioactive
- Automatic Detection. Identification and Monitor modes of operation
- Rugged and lightweight
Operational Advantages
- The HF-QCM sensors are green and safe; and do not contain any radioactive source
- HF-QCM enables enhanced explosives. improvised materials. narcotics and contraband detection
- Switching between explosives to narcotics mode is immediate
- Expandable threat libraries are available to accommodate unique user requirements
- Self-calibration and automatic cleaning mechanism enables a short clear down time after an alarm
- Proven and reliable operation in dusty. humid. and hightraffic areas
Ease-of-Use
- Threat detection and substance identification
- Touch screen menus on a graphical user interface can be easy to learn and operate
- Software upgrades can be easy to install Local language options available
- Three default user levels (Operator. Supervisor and Service Manager) for greater access control
Cost Effective
- Helps reduce capital investments by providing a single solution for both narcotics and explosives detection
- Patented sampling swabs help to reduce consumables costs
- Automatic self-diagnostics software to reduce maintenance downtime
Applications
- Aviation Security
- Customs & Border Control
- Air Cargo Screening
- Sea Ports
- Rail & Mass Transit
- Police & Law Enforcement
- Critical Infrastructure
- Military & Defense
- Hotels & Shopping Malls
Technical Specification
| Sensor Technologies | High-Frequency Quartz Crystal Microbalance Sensors (HF-QCM) |
| Sample Collection | Trace Particles and Vapors |
| Trace Particles Sample Collection | Sample collection and surface swipe of trace particles with sampling swabs |
| Vapor Samples Collection | Vapor sample collection with a portable and battery operated vapor sampler; |
| Operating Modes | Explosives only. Narcotics only |
| Explosives Detected | Military and plastic explosives. including: TNT. C4. RDX. Semtex. PETN. Detasheet and others. |
| y Narcotics Detected | Heroin. Cocaine. Amphetamine. Methamphetamine. MDA. THC. LSD. Ecstasy |
| Sensitivity | Particle: low nanogram (ng) range |
| False Alarm | Less than 2% |
| Warm-Up Time | Less than 60 seconds |
| Analysis Time | Between 7 to 15 seconds |
| Alarm Type | Audio and visual. with substance identification |
| Display | 3.5 Color TFT touchscreen LCD display |
| Multi-Language Support | English. French. Spanish. Italian. Portuguese. German. Polish. Russian. Chinese. Korean.Japanese. Arabic and others |
| Data Storage | Unlimited data logging. including time. date. sample analysis. and system status |
| Data Transfer | Micro USB Port. Optional Bluetooth and Wi-Fi |
| Printer | Optional evidence printout via remote printer |
| Input Voltage | 96-265VAC. 50-60Hz with 110/220V DC charger |
| Battery | 12V rechargeable Lithium-Ion battery with 6 hours of field operations |
| UPS | Optional UPS Input 230V. 50Hz |
| Weight | 850 gr. Including battery |
| Dimensions | (L x W x H): 7.78 x 3.50 x 2.78 (19.75 x 8.89 x 7.05 cm) |
| Operating Temperature Range | 20 to 130 (-7 to 54). less than 95% relative humidity. non-condensing |
| Hardened Specifications | Wind. rain. shock and 1 meter (3') drop resistance. ability to operate in wind conditions |
| Trolley | Optional adjustable workstation with locking wheels |
| Certification | CE Mark and EMC Certification |
