52cc 2-Cycle Viper Engine
1 or 2 Person Operation
Dual Triggers
Durable Jobsite Handlebars

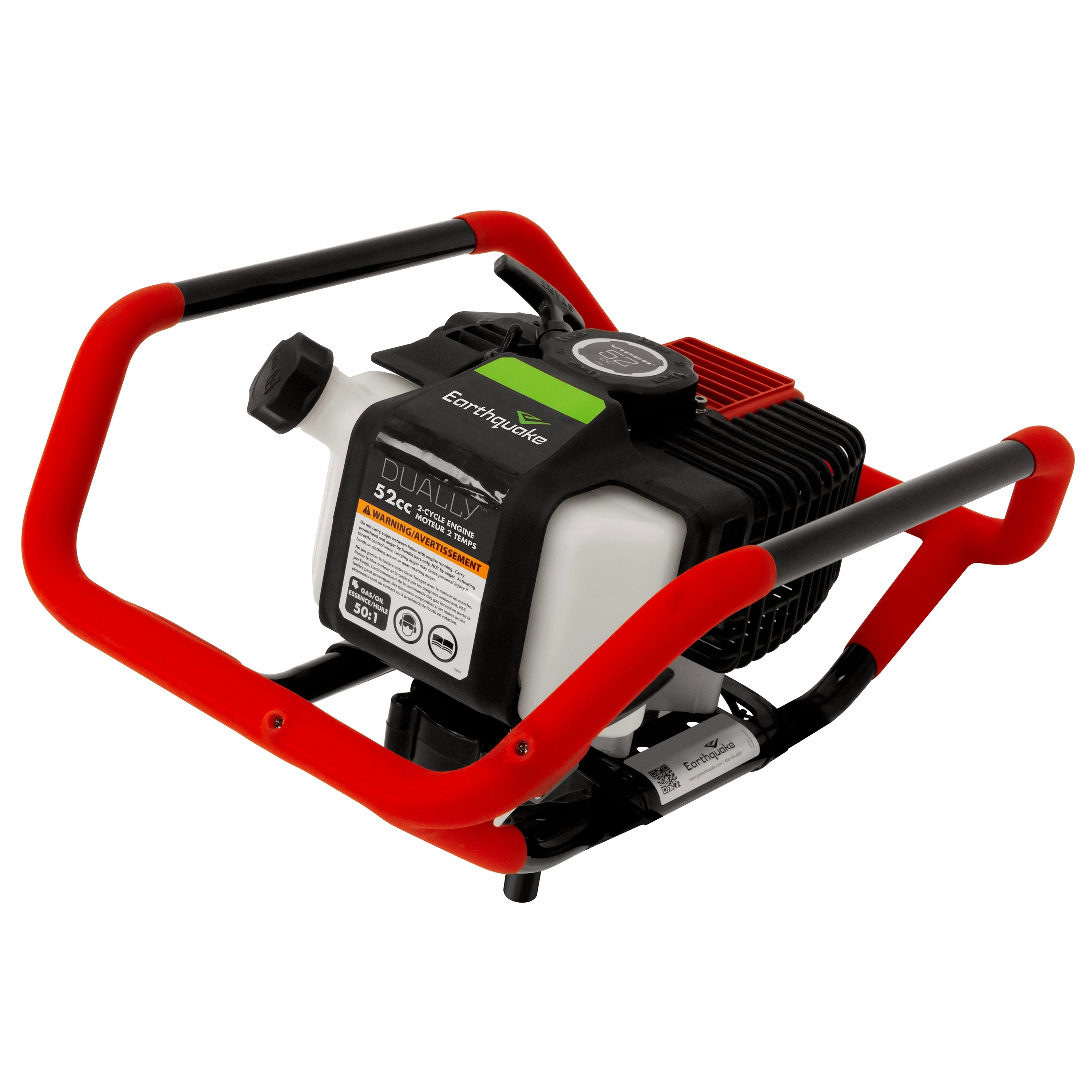

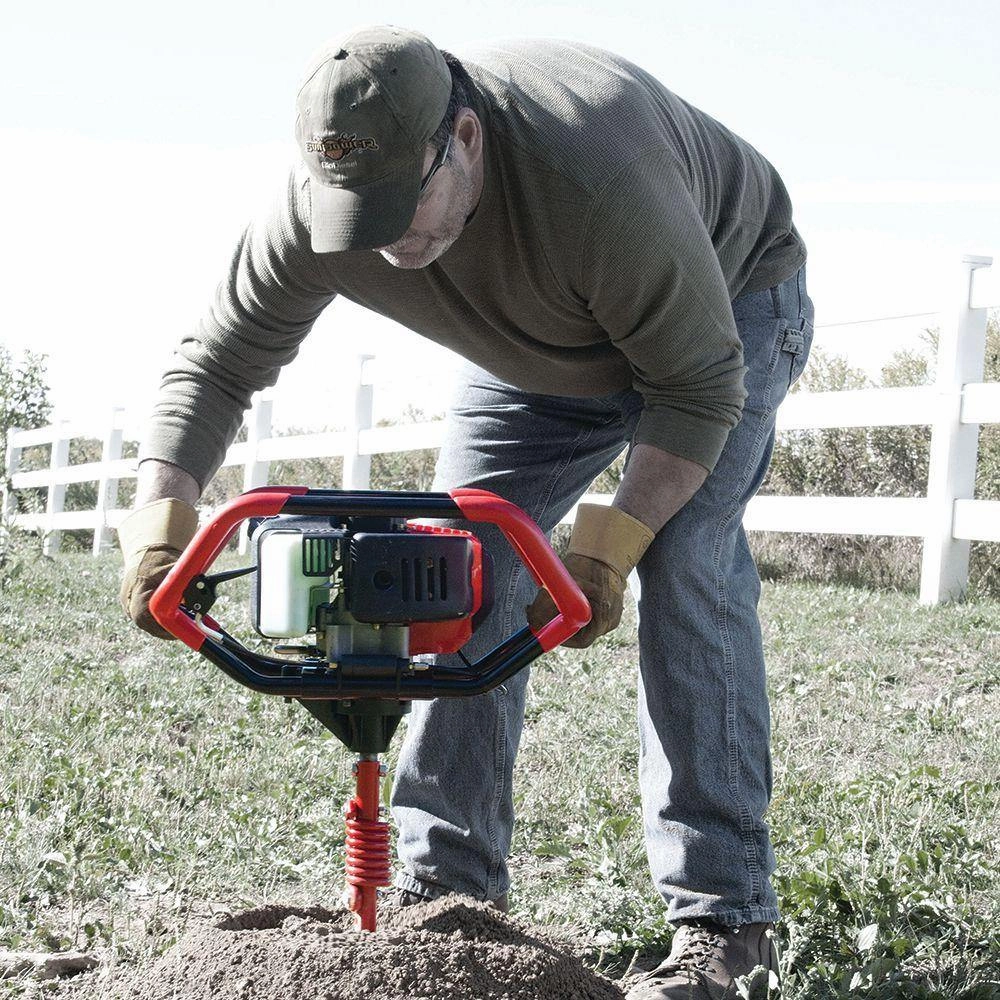

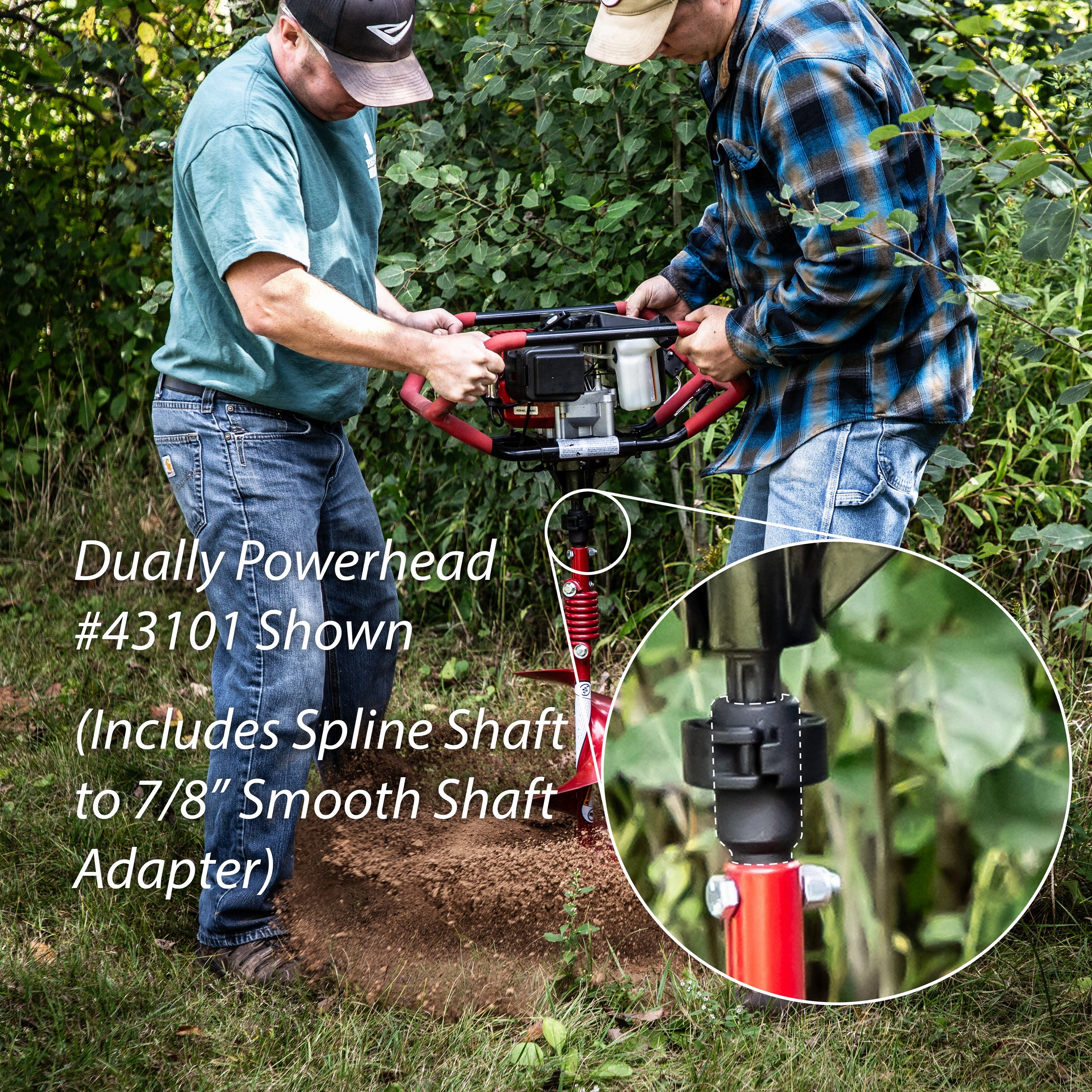

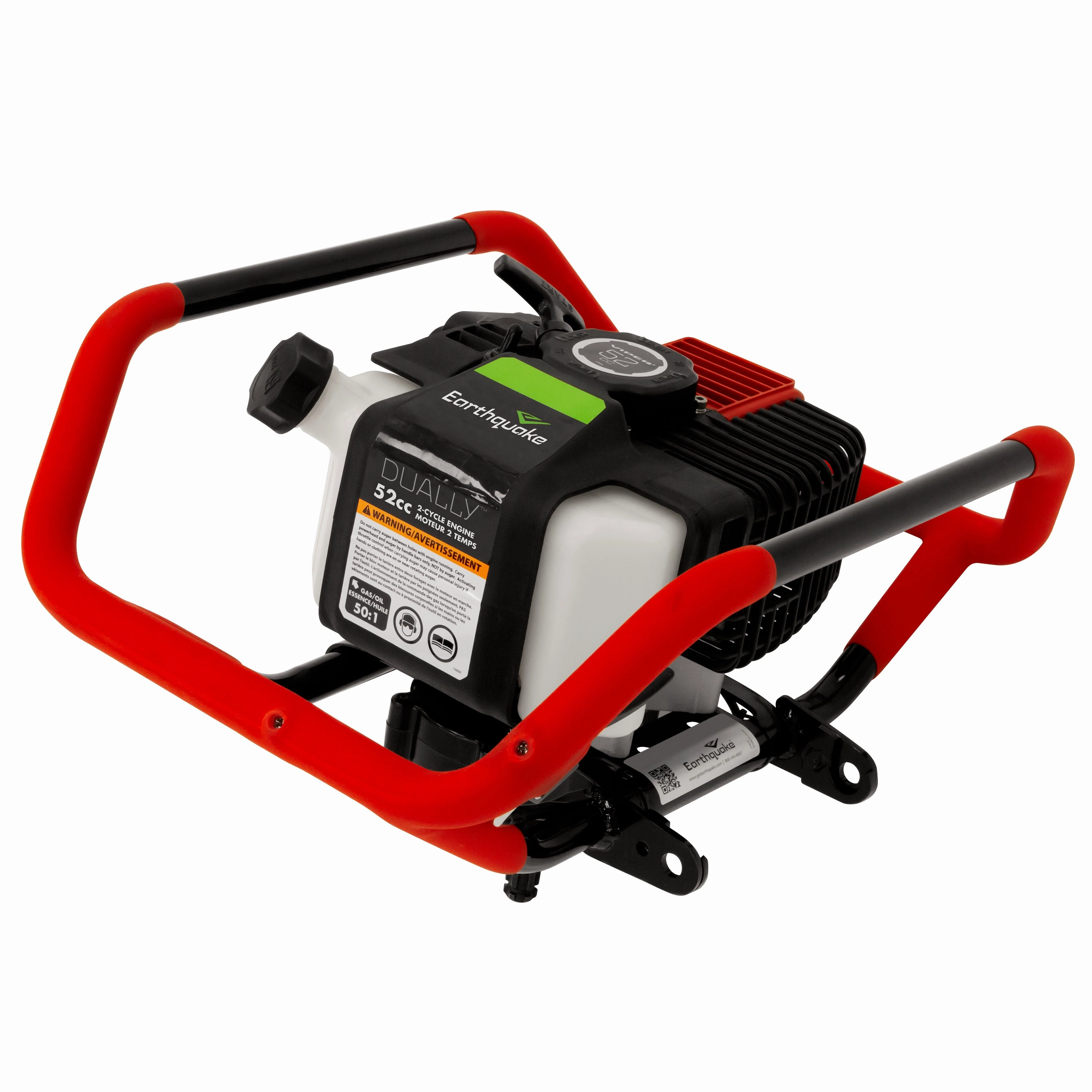

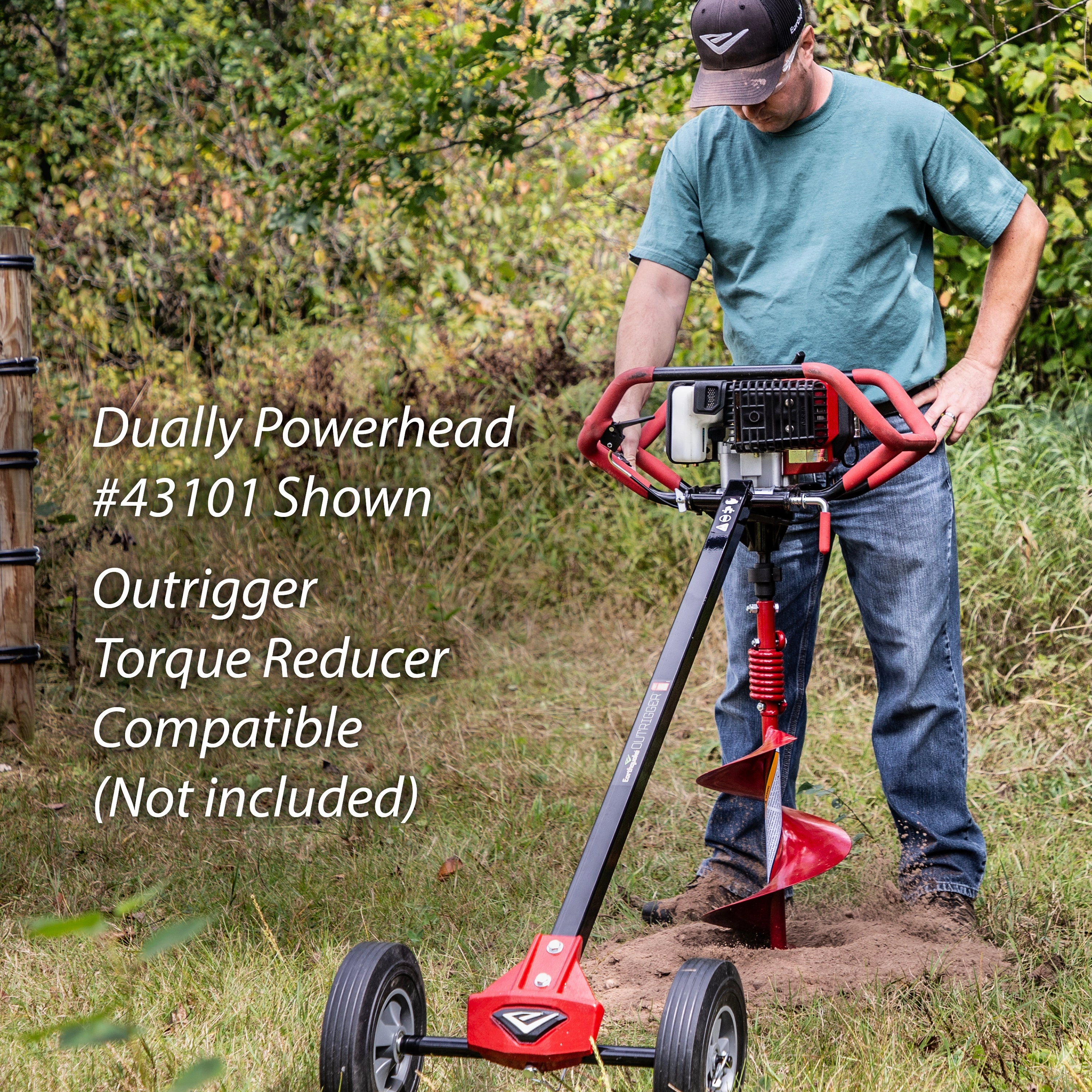

Drill holes by yourself or as a pair with the Dually Earth Auger Powerhead from Earthquake. The world's first one- or two-person power earth auger. For big outdoor tasks. the Dually handles extremely well when using two operators while still allowing single operators the option to work alone. The 52cc engine provides the perfect amount of power to handle any job. Connect the Outrigger Torque Reduction System to the Dually's integrated cradle. to help shoulder the load when in single operator mode. Combined with any of Earthquake's auger bits. the Dually Earth Auger Powerhead will make quick work of your to-do list. Earthquake's U.S Based Customer Service Team and 5-year warranty. ensure satisfaction with every purchase. Model 43101 is compatible with all Earthquake Torque Reduction Accessories. Patented Design.
Specifications
| Specification | Details |
|---|---|
| Model | 10310 (Smooth Shaft). 43101 (Spline Shaft) |
| Owners Manuals | 10310 Manual 43101 Manual |
| Adapter Included | 10310 - No 43101 - Yes |
| Auger Bit Included | No |
| Auger Connection | 10310 - Through Bolt 43101 - Quick Connect Coupler |
| Certifications | EPA. ICES-002 |
| Engine Brand | Viper |
| Engine Displacement | 52cc |
| Engine Type | 2-Cycle |
| Fuel Tank Capacity | 0.3 GAL |
| Fuel Type | 87 Octane Unleaded Gasoline |
| Gear Ratio | 30:1 |
| Number of Operators | 1 or 2 |
| Net Weight | 24 lbs |
| Number of Speeds | Variable |
| Oil to Fuel Mixture | 50:1 |
| Operational Auger Speed | 285 RPM |
| Output Shaft Bolt Size | 10310 - 3/8 43101 - N/A |
| Output Shaft | 10310- 7/8 Smooth Shaft 43101- 0.775 Spline Shaft |
| Output Power | 62 ft-lb |
| Recommended Oil | JASO FC Class 2-Stroke with Fuel Stabilizer |
| Start Type | Recoil |
| Torque Reduction and Transport Accessory Compatible | 10310 - No 43101 - Yes |
| Transmission | Ball Bearing. Alloy Steel Gear Driven |
| Warranty | 5-Year Limited |
| Patent | ardisam.com/patents |
