Garrett Paragon ADA - ADA 32.5 clearance IP65 # 1172003

Best Walk Thru Metal Detectors - ONE PARAGON. TWO SIMULTANEOUS SENSITIVITIES

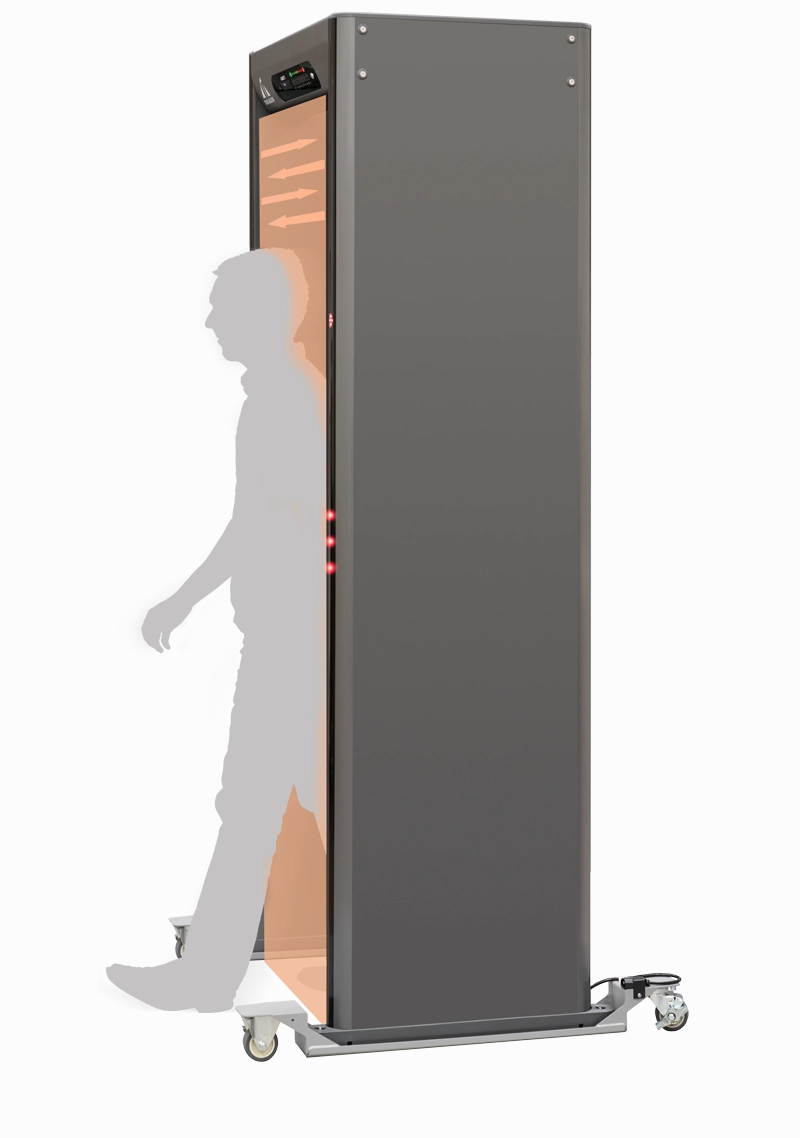

Paragon ADA - ADA 32.5 clearance IP65 version. 66 independent zones with bilateral detection.More than the sum of itsparts.

The GarrettParagonpossesses the best attributes of its predecessors. but also introduces never-before seen setup and operation features. as well as a distinct and pleasing new aesthetic. Modern. mission-critical security systems require a detector that is connectable. adaptable. and reliable.Paragonis all of that and more.

A model of excellence.

Paragonsets the bar for the future of high-security detection with its user-empowering features and high-performance detection capabilities. Catch the ferrous and non-ferrous metallic contraband you want to find with more program options than ever and improved sensitivity and interference immunity.

Diverse applications.

From stadiums to courthouses andtheme parks to schools.Paragonhas the flexibility to serve the needs of your moment. Respond in real-time with easily adjustable settings and superior mobility. ensuring that surprise traffic changes or unexpected VIPs never leave your security systemscrambling.

GARRETT EXCLUSIVE FEATURES

Name: Garrett Paragon ADA - ADA 32.5 clearance IP65 # 1172003
SKU: 314506

Integrated UPS.
Internally-mounted emergency power ensures continuous operation in the event of accidental AC disconnect or power outage.

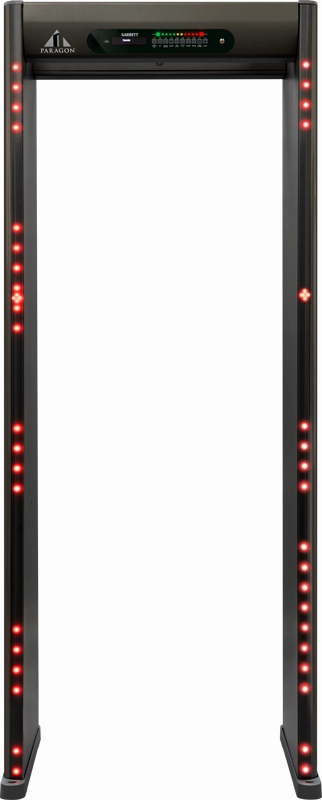

High-visibility pacing lights.
Allows patrons and staff to clearly see entry locations at large events.

Cabinet storage.
Allows charging of handheld detector while not in use.

IP 65.
Exacting construction provides protection from dust and moisture.

Sophisticated design.
Paragon's smooth and trim structure is as at-home in an office building as a stadium.

Zero Touch.
NFC card reader allows settings adjustment without mechanical insertion. meaning less wear and fewer cardreplacements.

TOF.
Time of Flight sensors detect both the presence of people and the direction of movement through the walkthrough portal.

Secure crosspieces.
Both detection head and crosspiece are key-lock secured to prevent tampering.

Quick-Q.
Optional settings allow cell phones to be ignored while still catching mass casualtyweapons.

200 sensitivity levels.
Paragon's 23 programsare all adjustable to 200 sensitivity levels for maximum security choice.

3 Year Warranty
See Warranty notice.

GARRETT EXCLUSIVES

AMBISCAN

WithAmbiscan. one detector does the work of two. ThisParagonfeature allows supervisors to set two distinct sensitivities based on the direction of traffic. Catch weapons coming in. Catch company property goingout.

DOUBLE THE DETECTION

BILATERALDETECTION

Paragonhas dual transmit and receive capability in both panels. a Garrett industry exclusive.

This means:

Evenly distributed detection across the walkthrough portal. Single-sided detectors experience falloff as the transmit strength varies from left to right.Paragoneliminates thisweakness
Simplified multi-unit setup.Paragon's doubled perspective improves its ability to account for and eliminate the interference caused by other walkthroughs in close proximity.
Superior target analysis.Paragon's bilateral screening is the electromagnetic equivalent of binocular vision. enhancing the ability of the detector to precisely identify and distinguish objects within the portal.

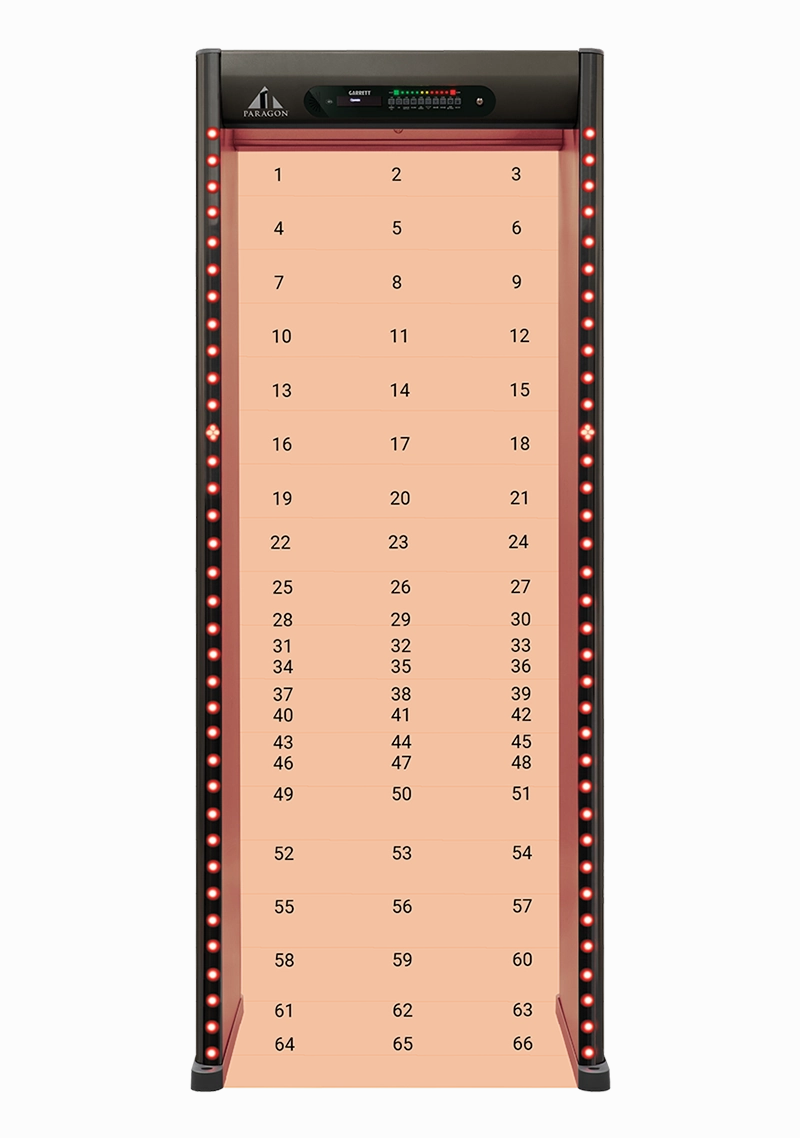

66ZONES

Paragonbrings with it an industry-leading 66 zones left/center/right identification of targets across 22 horizontal bands. This high-resolution detection lets operators find targets quickly and efficiently during secondary screening without diverting their attention away from the checkpoint.

Emphasize high risk zones with Zone Boost. All 22 ofParagon's horizontal bands are independently adjustable for maximum finesse in addressing the detection needs of yourfacility.

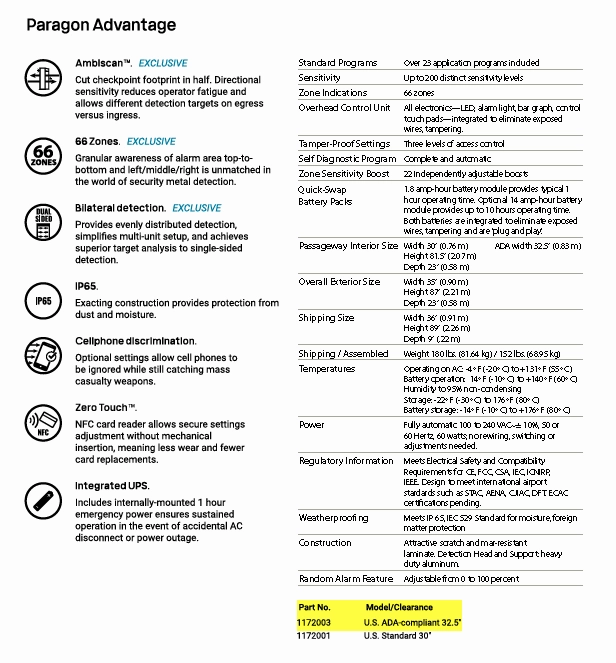

Standard Programs Over 23 application programs included

Sensitivity Up to 200 distinct sensitivity levels

Zone Indications 66 zones

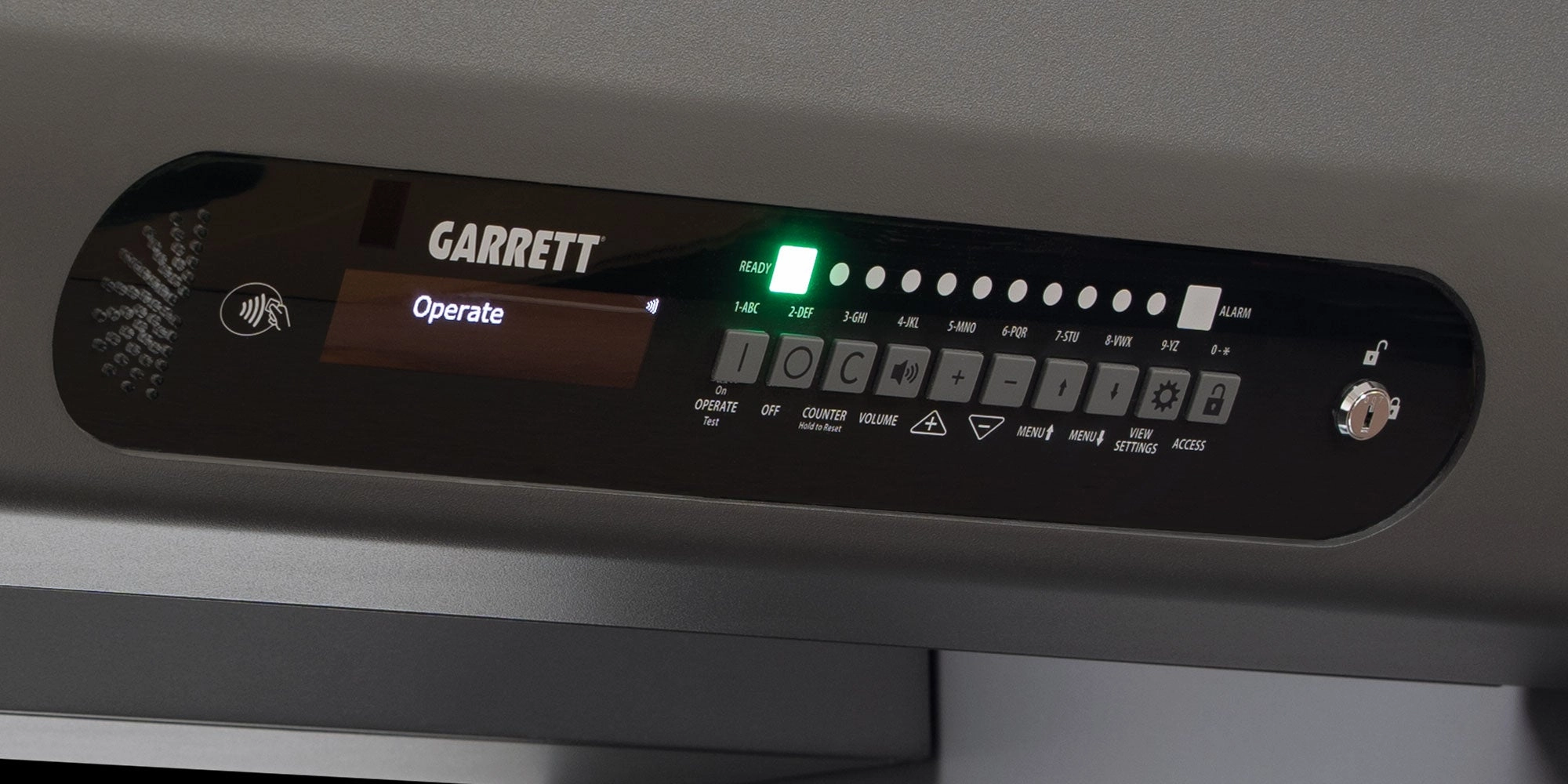

Overhead Control Unit All electronicsLED. alarm light. bar graph. control touch padsintegrated to eliminate exposed wires. tampering.

Tamper-Proof Settings Three levels of access control

Self Diagnostic Program Complete and automatic

Zone Sensitivity Boost 22 Independently adjustable boosts

1.8 amp-hour battery module provides typical 1

Quick-Swap

hour operating time. Optional 14 amp-hour battery

Battery Packs

module provides up to 10 hours operating time. Both batteries are integrated to eliminate exposed wires. tampering and are 'plug and play'.

Passageway Interior Size Width 30 (0.76 m) ADA width 32.5 (0.83 m) Height 81.5 (2.07 m) Depth 23 (0.58 m)

Overall Exterior Size Width 35 (0.90 m) Height 87 (2.21 m) Depth 23 (0.58 m)

Shipping Size Width 36 (0.91 m) Height 89 (2.26 m) Depth 9 (.22 m)

Shipping / Assembled Weight 180 lbs. (81.64 kg) / 152 lbs. (68.95 kg)

Temperatures Operating on AC: -4 F (-20 C) to 131 F (55 C) Battery operation: 14 F (-10 C) to 140 F (60 C) Humidity to 95% non-condensing Storage: -22 F (-30 C) to 176 F (80 C) Battery storage: -14 F (-10 C) to 176 F (80 C)

Power Fully automatic 100 to 240 VAC~ 10%. 50 or 60 Hertz. 60 watts; no rewiring. switching or adjustmentsneeded.

Regulatory Information Meets Electrical Safety and Compatibility Requirements for CE. FCC. CSA. IEC. ICNIRP. IEEE. Design to meet international airport stardards suchas STAC. AENA. CJIAC. DFT. ECAC certificationspending.

Weatherproofing Meets IP 65. IEC 529 Standard for moisture. foreign matter protection

Construction Attractive scratch and mar-resistant laminate.Detection Head and Support: heavy dutyaluminum.

Random Alarm Feature Adjustable from 0 to 100 percent.
