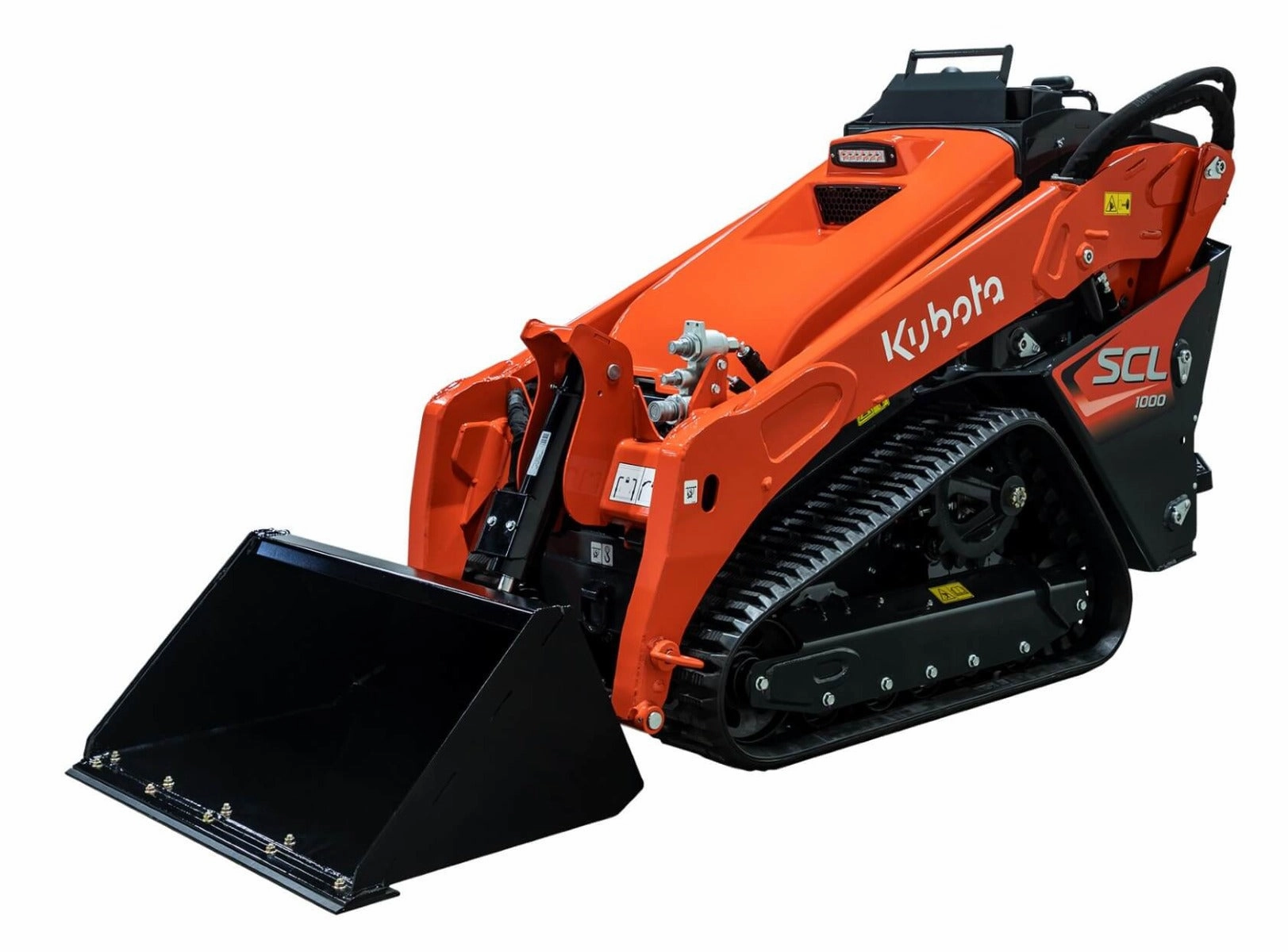

Kubota SCL 1000 Stand-On Compact Track Loader

Compact in size but packed with performance and features! TheKubota SCL 1000 Stand-On Compact Track Loaderis designed to handle tough tasks and materials in tight and narrow spaces! The 24.8 HP turbo charged Kubota diesel engine provides quiet operation with superior power and requires no DPF! The narrow 36 width allows you to bring the power where you need it. fitting into the tightest of spaces!

Kubota SCL 1000 Stand-On Compact TrackLoader Exclusive Features:

Integrated Track Design - A robust undercarriage is welded to the mainframe with sealed oil bath rollers and a Grease track tension design!
Turbo Charged Engine - Quiet operation while offering performance at high altitude and requiring no DPF
Narrow Overall Width -The 9.8 wide tracks provide a low 4.0 psi ground pressure while measuring in at an overall width of 36 inches to fit in the tightest of places!

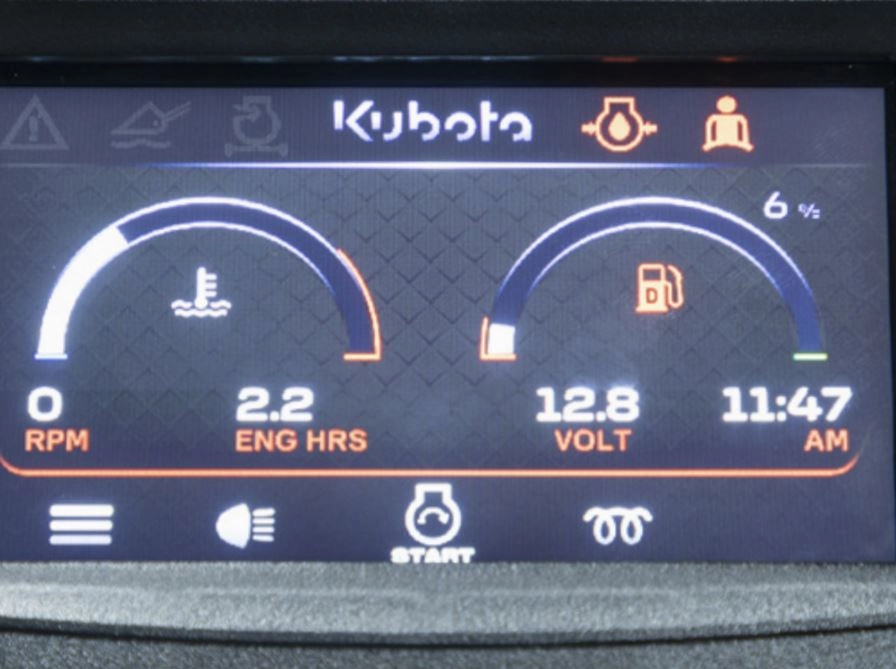

LCD Colour Dash Monitoring System - Keyless Start with password protection. the LCD screen gives you easy to read. consolidated machine monitoring with service interval reminders!

Kubota SCL 1000 Stand-On Compact TrackLoaderFeatures:

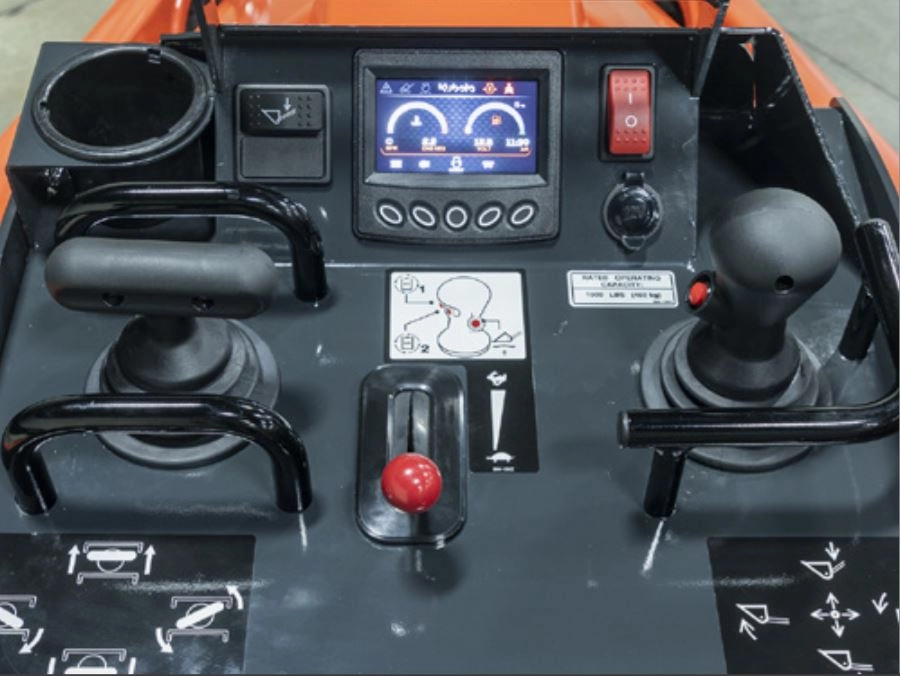

Operator Controls - The patent pending T-drive handle provides intuitive and ergonomic steering while the Hydraulic pilot-operated loader and drive control valves offer precise and responsive control of the machine.
Vertical Lift - The loader arms reach higher and further than the competition with a hinge pin height of 84.7 and a reach of 26 (at 45 dump angle)
Comfort and Convenience - The cushioned loader boom cylinders and adjustable platform suspension increase comfort for the operator. maximizing productivity!
Durability - Theauxillaryhydraulic lines are routed inside the loader arm for optimal protection.

Kubota SCL 1000 Stand-On Compact TrackLoader Specifications:

Engine

Engine Type - Water cooled 4 cycle diesel engine with 3 cylinder. turbo. EPA Tier 4.
Engine Model - Kubota D902-T
Total Displacement - 54.8 cu.in.
Engine Power - 24.8 HP
Rated Speed - 2800 rpm
Low Idling Speed - 1250 rpm

Dimensions

Overall Length (Without Bucket)-84.9
Overall Width (with standard Bucket)- 36
Overall Height - 55.7
Operating Weight - 3.035 lbs
Rated Operating Capacity (35%) - 1000 lbs
Tipping Load - 2.857 lbs
Wheelbase - 40.5
Hinge Pin Height at Max lift - 84.7
Reach at Max lift 45 Dump - 26
Track Width - 9.8
Ground Clearance - 7.4
Angle of Departure - 25.2

Performance

Attachment Mounting System - CII (Common Industry Interface) or 2 Lever Quick-Attach
Travel Speed (Fwd/Rev) - 4.9 mph (7.9 km/h)
Ground Pressure - 4.0 psi
Battery Capacity - 12V. RC 80. 540 CCA
Auxilary Hydraulic Flow - 15 gal/min
Auxillary Hydraulic Pressure - 2800 psi
