Mifram Security Hammer Multipurpose Container Based Hanger

Blast Resistance Multipurpose Container - Modular. Prefabricated. Portable

Protect Troops. Civilians. Vehiclesand Equipment

A protected area based on fast. modular constructionusing strengthened. inert materials filled sections.Provides effective protection from mortar shells. rocketsand more.

Design can beconfigured to either protect soldiers and civilians orto protect command systems and vital vehicles and equipment.

Configuration To Protect Personnel

Fortified structure with a wide opening for fast and easyconstruction designed to protect troops. civilians. vehiclesand equipment. The structure is constructed using fortified.elements filled with an inert material (dirt / sand / concrete).

The area of the basic fortified structure is approximately 84 SqM. (net) and cancontain some 366 soldiers and their equipment for a short period or 168 soldiersfor longer periods.

Blast Resistant Modular Buildings Hammer Multipurpose Container Based Hanger

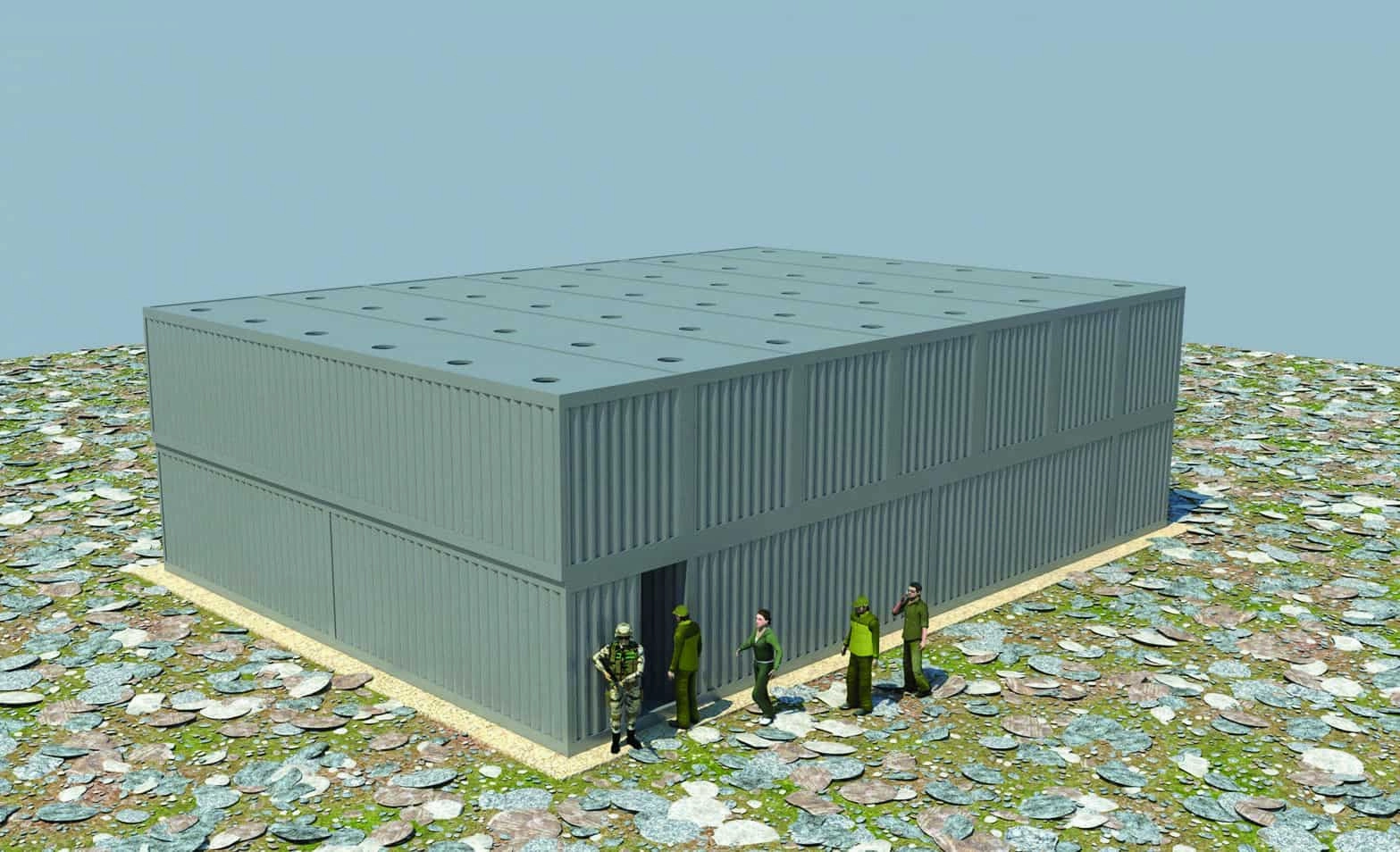

• Designed to protect soldiers and civilians

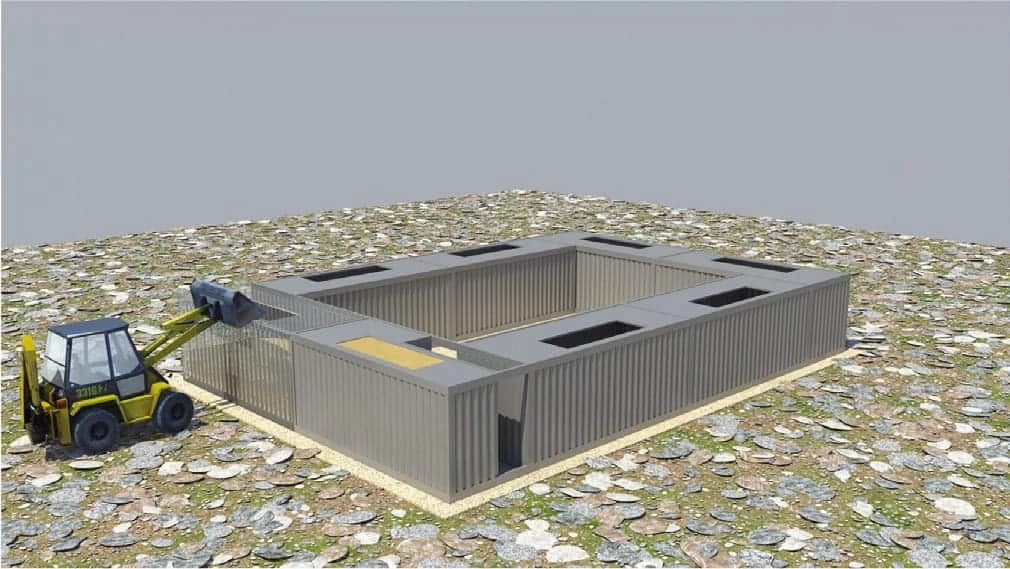

• Filling elements with sand with mechanical equipment via the roof opening

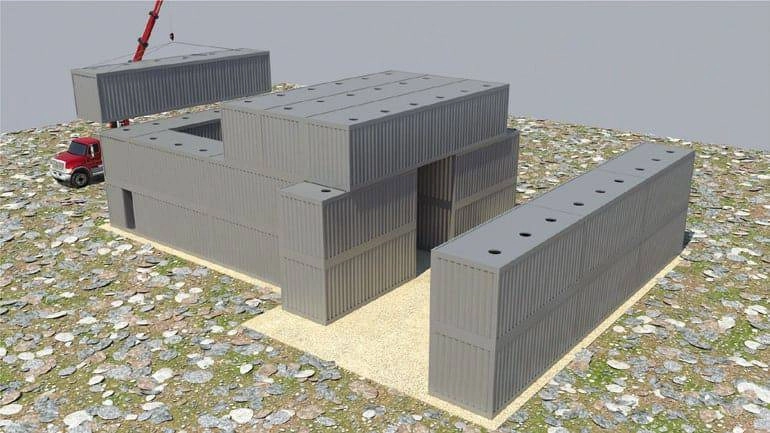

• Placing roof sections. connecting and closing roof

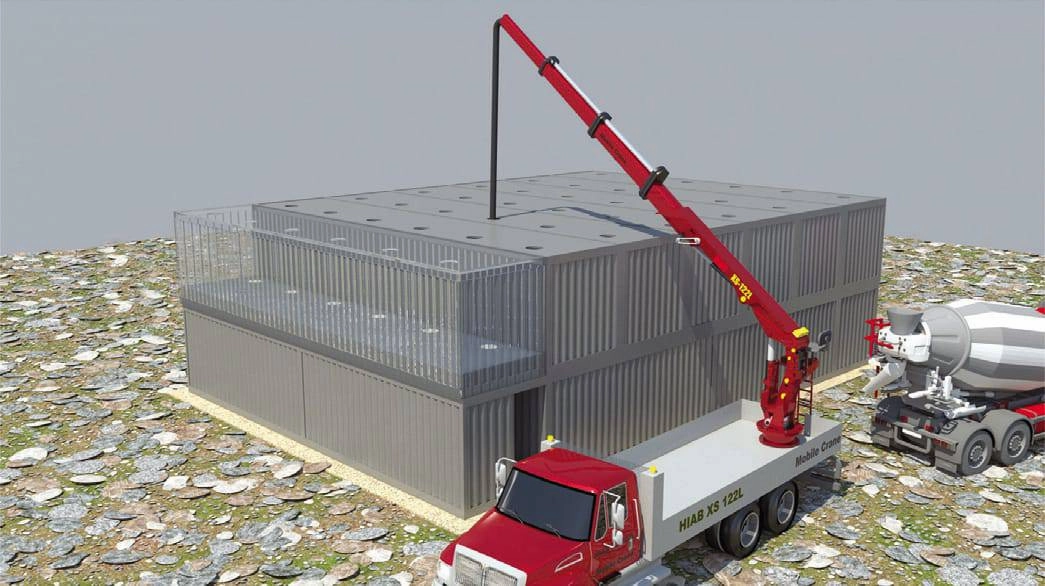

• Filling roof sections with sand or concrete via roof openings
• Larger hanger version designed for short term stay for up to 1000 soldiers with equipment. Includes barracks and sanitation facilities

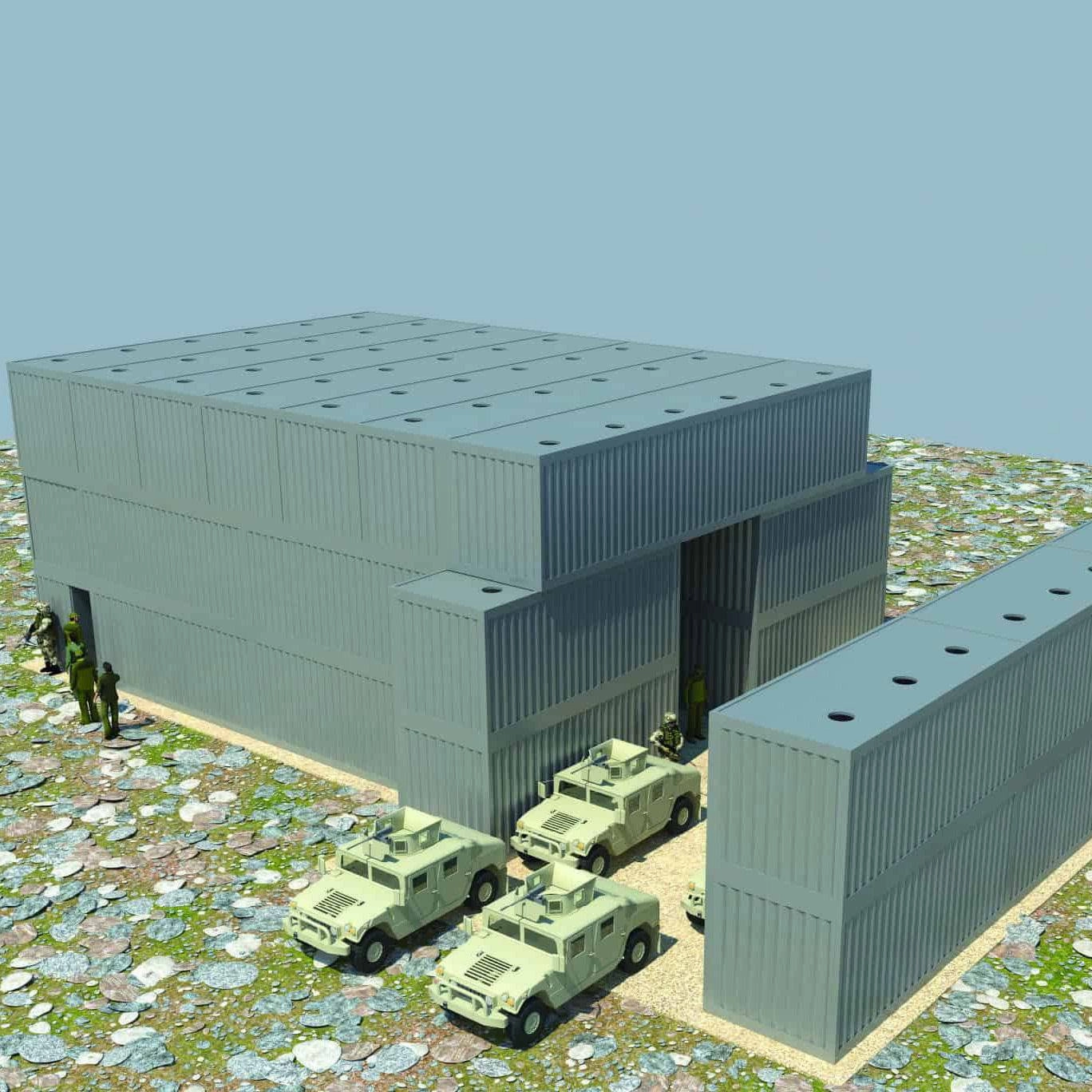

Configuration to Protect Command System. Vital Vehicles & Equipment

Fortified structure with a wide opening for fast and easyconstruction designed to protect troops. civilians. vehiclesand equipment. The structure is constructed using fortified.elements filled with an inert material (dirt / sand / concrete).

The area of the basic fortified structure is approximately 84 SqM. (net)and can contain varying numbers of vehicles according to their size.

Hammer Multipurpose Container Based Hanger

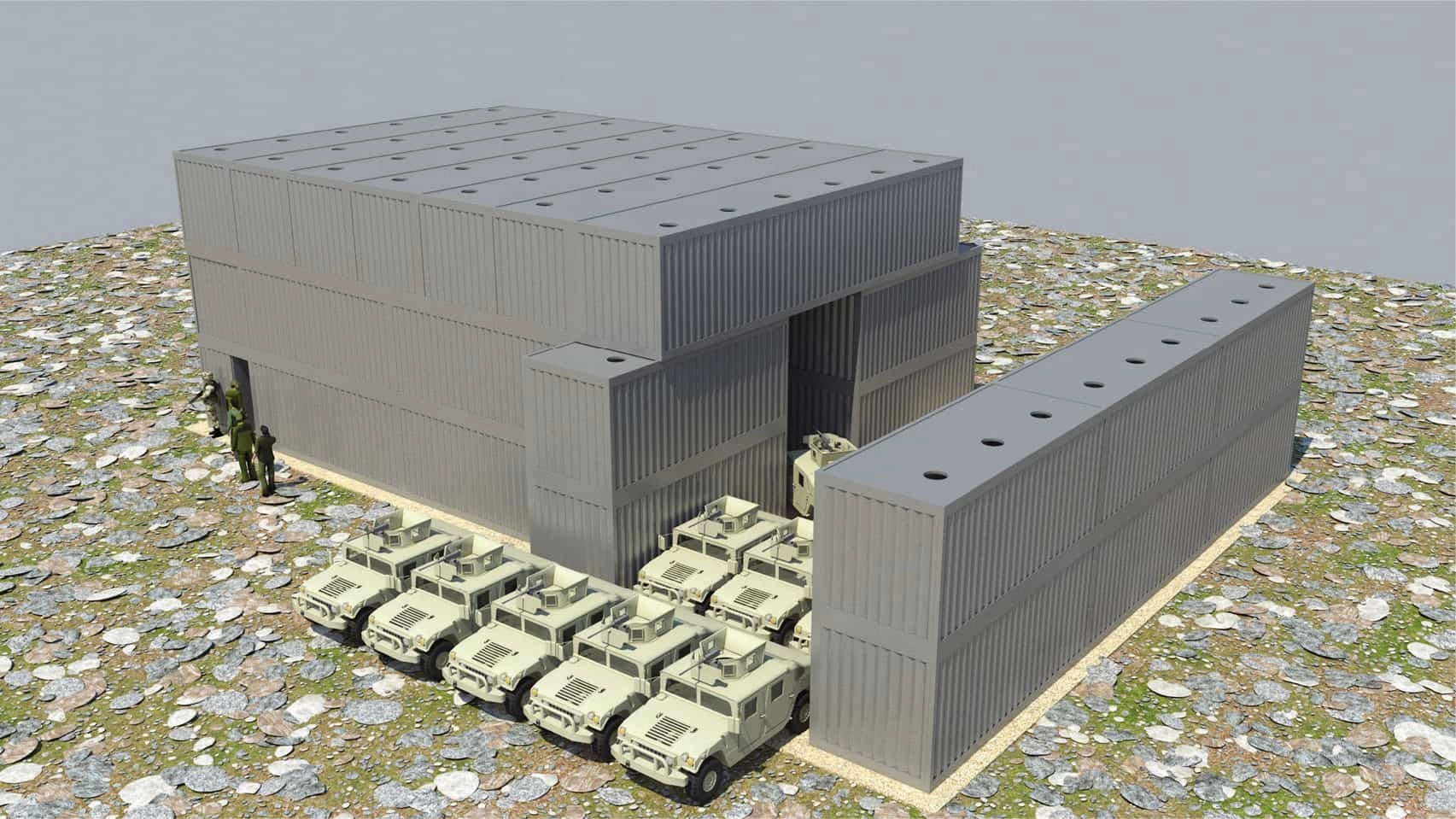

• Designed to protect command systems and vital vehicles and equipment
• Filling first floor with sand
• The hanger can be provided in sizes and configurations as needed

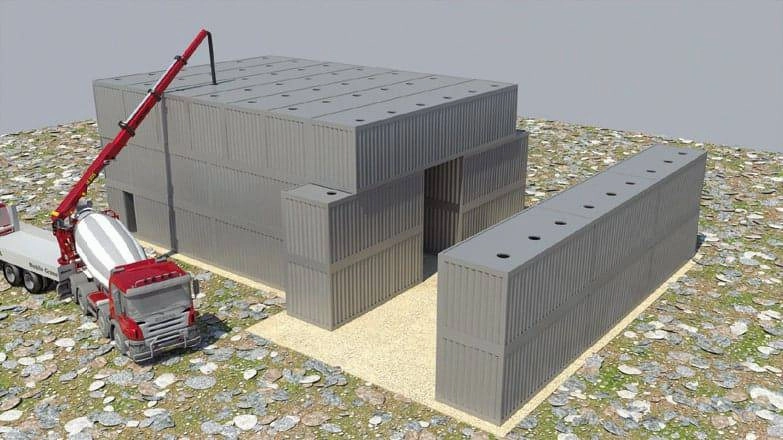

• Filling roof sections with layers of sand or concrete via a pump

Hammer Multipurpose Container Based Hanger Advantages

• The optimum solution for fortifyingstaging areas. troop concentrationsand temporary command posts
• Protection from the elements
• Can be dismantled. moved andreused
• Is available in a variety of sizes.
• Vehicle configuration: the internal area has anespecially high. five meterceiling suitable for tall vehiclesand command vehicles.
• Modular
• The structure is constructedaccording to the needs anddemands of the client and can besupplied in any size

Explosion proof building solutions for many threatscenarios

• Small-arms fire up to and including 0.5 in.
• Hand grenades shrapnel andartillery shells
• Bomb and missile blast based on relative threat
• Direct hit by RPG 7 (excluding liner)
• Direct hit and near miss by mortar up to and including 120 mm.
• Direct hit and near miss by rocket up to and including 122 mm.
• Near miss from car bomb with2.5 tons of explosive (!).

Blast Resistance simple and easy constructionprocess

• Fast preparation and leveling of thearea prior to the structure's erection.
• Positioning of structure's sections.strengthened at the ground floor level(the basic units is a combination of 29fortified elements (22 20-foot units andseven 40-foot units).
• Filling units with dirt/sand/concretethrough a roof opening.
• Placement of roof elements.connecting and closing roof.
• Filling roof elements with a 50 cm.layer of concrete (alternatively a 100cm. sand layer) via roof openings.

BlastProof equipment needed forconstruction

• Crane truck / medium sized mobilecrane (80 tons)
• Tractor / Power Shovel / Digger locally available soil. sand or gravel.
• Alternatively Big Bags for filling withsoil/ sand pump / and installed in thesections using the crane.
• After use. thesections can be removed behind thelines. without heavy cranes. for reuse.

Blast Resistant Hammer Multipurpose Container Specification Table:
