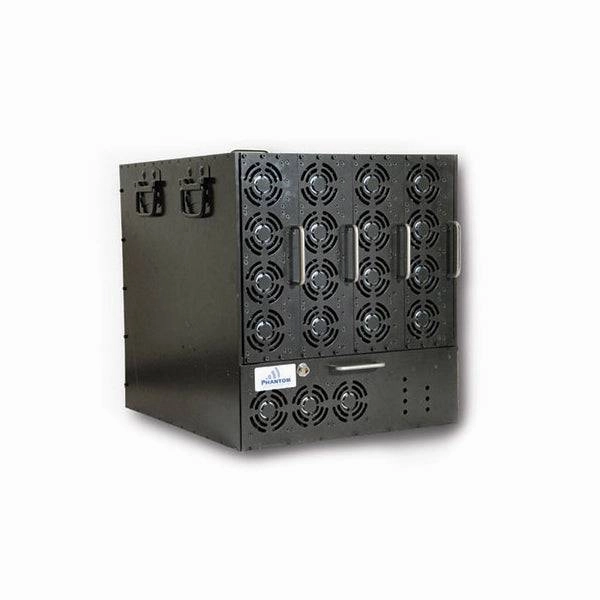

The Satellite Jammer is a vehicle mounted very high power jammer designed for blocking satellite communication.The Satellite Jammer is using state-of-the art technology for maximum performance.
The unit is controlled by Microprocessor for DDS programming and uses unique modulation technique based on mixed signal for maximum jamming efficiency.
Each module of Satellite Jammer transmits unique noise signal. which create a firewall between satellite and its receivers.The jamming signal is being generated by Multi-VCO chain and DDS which results very high sweeping rate along the bands hence create high RF density in each part of protected frequency band.
Jamming distance of Satellite Jammer depends on several conditions such as antenna angle to receiver. transmitter and output power. distance to receiver etc. System modularity allows flexible usage in different applications.
The system supports simultaneously jamming of 5 bands.The system uses Broadband Directional Antennas for selective jamming area.
SYSTEM FEATURES
Systems have 3 modes of operation:
1. Sweep Mode
In this mode the EW1600 Jam the whole frequency bands at an ultrafast speed continuous sweeping.
2. Spot Mode
In this mode the EW1600 Jam simultaneously up to 8 frequencies from the same or different band(s).
3. Band Specific
In this mode the EW1600 Jam specific band or bands from the 5 available bands.
- Designed to block satellite communication
- Output power up to 1.200W per band
- Modules of Jammer operates separated
- Separate switch ON/OFF and switch Operation Modes
- Remote control by PC
- Specific signal source per band for maximum jamming efficiency
TECHNICAL SPECIFICATIONS
RF Characteristics
| Output Power | 3 x 1.200W / Optional 2 x 500W |
| Jamming Range | Depend on field conditions |
| Internal Modulation | FM Hopping / Sweep White Nois |
| Signal Source | DDS |
| Power Supply | 110/220VAC or 48 VDC |
| Sweep Rate | Fixed |
| Power Consumption | 10KW |
| Modules Per Unit | Up to 5 |
| Remote Control | Programming. ON/OFF & Modes Via PC |
| Antennas | Directional Antennas |
| Power Amplifier Protectors | Full VSWR protector Over Heat Thermal protector Over Current protector |
Jamming Frequency Range
| Frequency Frequency Band | L1 Band 1.5651.585 GHz L2 Band 1.2161.236 GHz L5 Band 1.150-1.200 GHz |
| Air Interface Standards | Satellite Communication |
Physical Data
| Dimensions | 500 x 430 x 348 mm 19 x 8U (Up to 5 Racks not including PS) |
| Weight | Approx. 500Kg |
Environment of operation
| Operating Temp | -40C to 65C |
| Humidity | 5% 80% |
Optional Accessories
| Backup Battery | Yes |

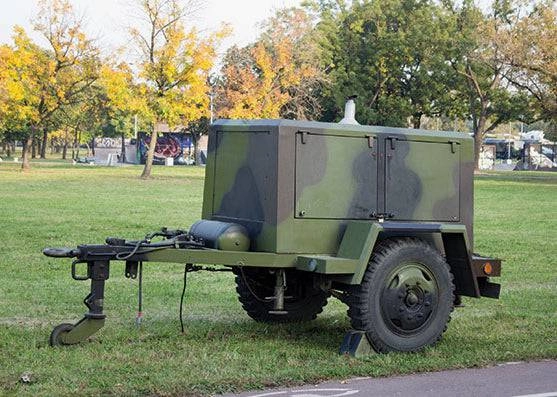

| Electric Generator | 220VAC / 8KVA |
| Control Cable Via PC | TCP/IP |
| DC-DC Converter | Internal |
*Specifications are subject to change without prior notice
OUTPUT POWER DIVISION
| Frequency Band | Output Power Watts |
| L1 Band 1.565 1.585 GHz | 1.200 |
| L2 Band 1.216 1.236 GHz | 1.200 |
| L5 Band 1.150 1.200 GHz | 1.200 |
| Future Band Reserved | 500 |
| Future Band Reserved | 500 |
*Specifications are subject to change without prior notice
Output Power Control
The user can control the output power of each band easily by using the Programming Software. The system can be programmed to transmit from 50W and up to 1.200W per band.
After programming the required output power. the system store the parameters so in the next operation the user do not have to repeat again unless he wish to set the output power to a different level.
System Components
- Digital 5 bands exciter & Power Amplifiers
- External High Gain Directional Antennas
- CPU Central Processing Unit
- GUI Graphical User Interface
- 8.5 GHz Spectrum Analyzer
- Electric Generator and Backup Batteries
