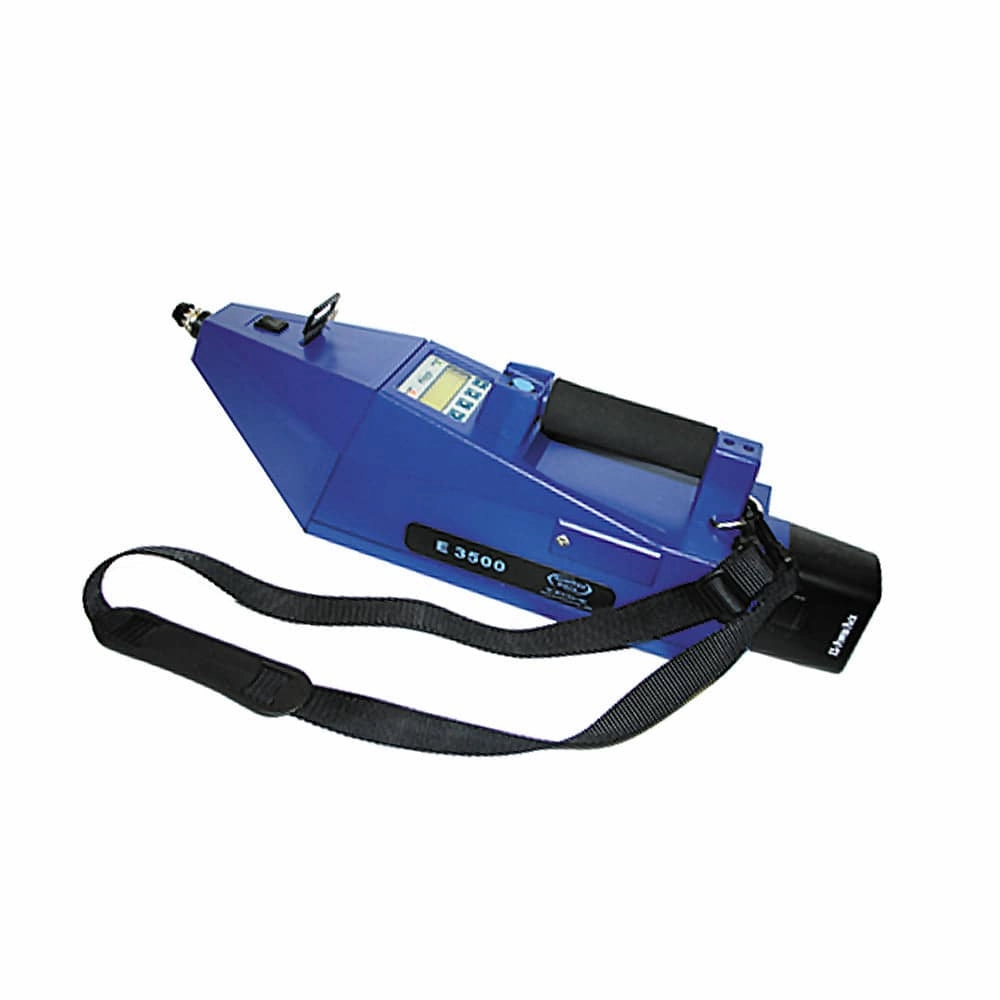

Explosives Detector -ScintrexE3500
Handheld Explosive Detector ForQuick & Accurate Results
The Scintrex E3500 Trace Detector explosives trace detector uses advanced chemiluminescence technology to detect homemade. military and commercial explosives. including ICAO taggants. plastics. ammonium nitrate. black powder. other nitrates and TATP.H.MTD
Built to withstand rough handling and tough environments. the E3500 packs potent detection capability into a lightweight. durable thermoplastic housing. The handheld E3500 analyzes both particulate and vapor samples in seconds. without the need for radioactive isotopes or carrier gases.
A global leader in explosives. chemical and narcotics detection. Scintrex Trace is Autoclear's Canadian-based trace detection division. Like Autoclear's flagship X-ray systems. these products deliver unsurpassed accuracy. speed and reliability for detecting the most dangerous and cleverly concealed threats.
Handheld Explosive DetectorE3500Features:
- Resists contamination from weather. terrain.humidity. dirt and dust
- Delivers laboratory-grade accuracy to the field
- Identifies both particulates and vapors in seconds
- No radioactive isotopes or carrier gases needed
Explosive DetectorE3500Applications:
- Force Protection
- Customs and Borders
- VIP Screening
- Embassies and Consulates
- Royal and Diplomatic Protection
- Critical Infrastructure
- High Security Events
Handheld Explosive DetectorE3500Specification:
Detector: Chemiluminescence
Analysis Time: 16 seconds
Explosives Detected: PETN. RDX. TNT. dynamite. Semtex.
C-4. black powder. ammonium and urea nitrates. NG. ICAO taggants. EGDN and DMNB. TATP. peroxides. chlorates
Sensitivity: Nanogram
Sample Collection: Particulates and vapors
Warm-up Time: None. after one minute start
Alarms: LED indicator lights and audible alarm
Power Supply: 12 V DC rechargeable four hour battery pack
Input Voltage: 90-264 VAC. 50-60 Hz universal switching
Unit Weight: 3.0 kg (6.6 lbs.) with battery
Unit Dimensions: 50.0 x 14.0 x 11.0 cm
(L x W x H) 20.0 x 5.5 x 4.3 in.
Operating Temp: 0o to 55oC (32o to 131oF)
Storage Temp: -5o to 65oC (23o to 149oF)
Communication: RS-232 serial output port
Data Storage: 1.000 retrievable data records
Options: 12 V AC battery. external battery. printer
