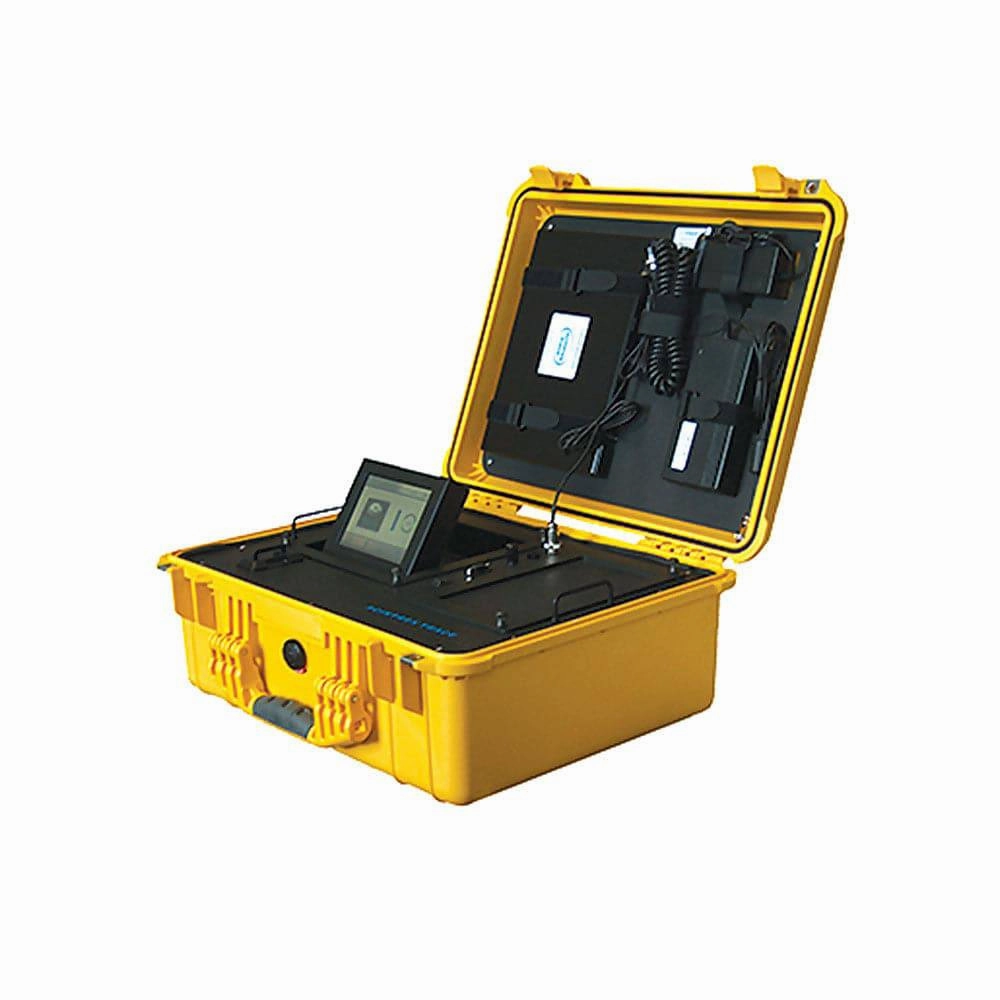

Portable Explosives Detection -Scintrex Trace E4500

The Scintrex Trace E4500 is the world's first portable tabletop gas chromatography-chemiluminescence (GC-C) detector for automatically pinpointing homemade. military and commercial explosives. such as RDX. PETN. TNT and TATP. The high-speed E4500 delivers clear go/no go results in just 15 seconds. and never requires carrier gases or radioactive isotopes.

Designed to withstand the most rugged environments. the lightweight E4500 is virtually impervious to outside contaminants. Featuring a robust. reusable sampling screen and an easy-to-read display. this versatile unit is extremely convenient to set up. operate and maintain.

Portable Explosives DetectionFeatures

• Delivers laboratory-grade accuracy to the field
• Rapid. accurate and easy to read results in seconds
• Detects nitrogen- and peroxide-based explosive compounds

Portable Explosives DetectionSpecifications:

Detector: Gas chromatography-chemiluminescence

Analysis Time: 15 to 60 seconds

Explosives Detected: Most military and commercial explosives.

including PETN. RDX. TNT. dynamite. Semtex. C-4. NG. tetryl and other peroxides such as TATP and HMTD. ammonium and urea nitrates. Detasheet

Sensitivity: Sub-nanogram

Sample Collection: Particulates

Warm-up Time: 20 minutes maximum from a cold start

Alarms: Visual graphic and audible alarm

Power Supply: 14.4 V DC rechargeable battery 12 V AC adapter

Input Voltage: 90-264 VAC. 50-60 Hz universal switching

Unit Weight: 8.3 kg (18.3 lbs.) with power supply

Unit Dimensions: 43.2 x 35.6 x 20.3 cm

(L x W x H) 17.0 x 14.0 x 8.0 in.

Operating Temp.: 0o to 55oC (32o to 131oF)

Storage Temp.: -5o to 65oC (23o to 149oF)

Communication: RS-232 serial output port

Data Storage: 1.000 retrievable data records with SD memory card slot for additional data storage

Options: External battery. printer
