Explosive & NarcoticsDetectors -Scintrex Trace E5000
Cost Effective and EfficientExplosive & Narcotics detectors Scintrex Trace E5000 forTrace bulk drug detection highly usefulfor search and seizure teams

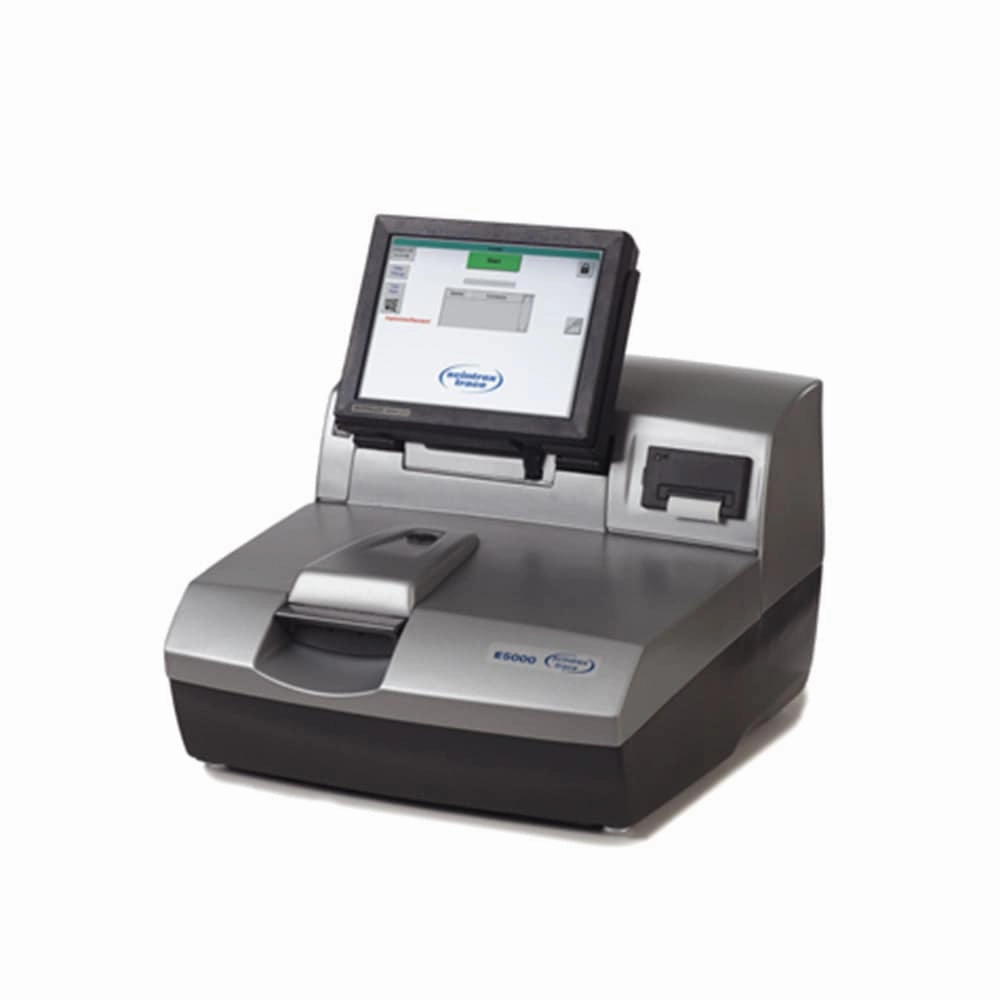

The Scintrex Trace E5000 Series Desktop Explosive Trace Detector delivers fast. accurate and reliable analysis results when screening for traces of explosives or narcotics. The combination of gas chromatography and ion mobility spectrometry technology provides operators with a highly selective and sensitive system designed for high throughput environments.
Simple sampling and a large color touchscreen display makes the system operator friendly. while low consumable and daily maintenance requirements keep cost of ownership low.
Explosive & Narcotics Detectors Scintrex Trace E5000 Features
- Deliver laboratory- grade accuracy
- Rapid. accurate and easy to read results in seconds
- Detects nitrogen- and peroxide-based explosive compounds
- Delivers laboratory-grade accuracy to the field
Trace Detector E5000Specifications:
Overall dimensions (L x W x H):
- 43.2 x 35.6 x 20.3 cm
- 17.0 x 14.0 x 8.0 in.
Weight:
- 8.3 kg
- 18.3 lbs.
Detector: Gas chromatography-ion mobility spectrometry (GC-IMS)
Analysis Time: 640 seconds (adjustable)
Explosives Detected: PETN. RDX. TNT. NG. dynamite. Semtex. C-4 and others (programmable)
Narcotics Detected: Cocaine. opiates. THC. heroin. amphetamine-type stimulants and others (programmable)
Sensitivity: Explosives: picogram Narcotics: nanogram
Sample Collection: Particulates
Warm-up Time: Under 30 minutes from cold start
Alarms: Visual graphic and audible alarm
Power Supply: AC/DC 24 V
Input Voltage: 85-264 VAC 47/63 Hz
Unit Weight: 26.2 kg (57.8 lbs.) with power supply
Unit Dimensions: 80.9 x 53.3 x 38.1 cm
(L x W x H) 31.9 x 21.0 x 15.0 in.
Operating Temp: 15o to 35oC (59o to 95oF) up to 90% humidity. non-condensing
Storage Temp: -5o to 65oC (23o to 149oF)
Communication: RS-232 serial output port
Data Storage: 35.000 retrievable data records
