HandHeldExplosive Detector -EVD-3000
Portable Explosive Detectorat Cost effective price with high efficiency

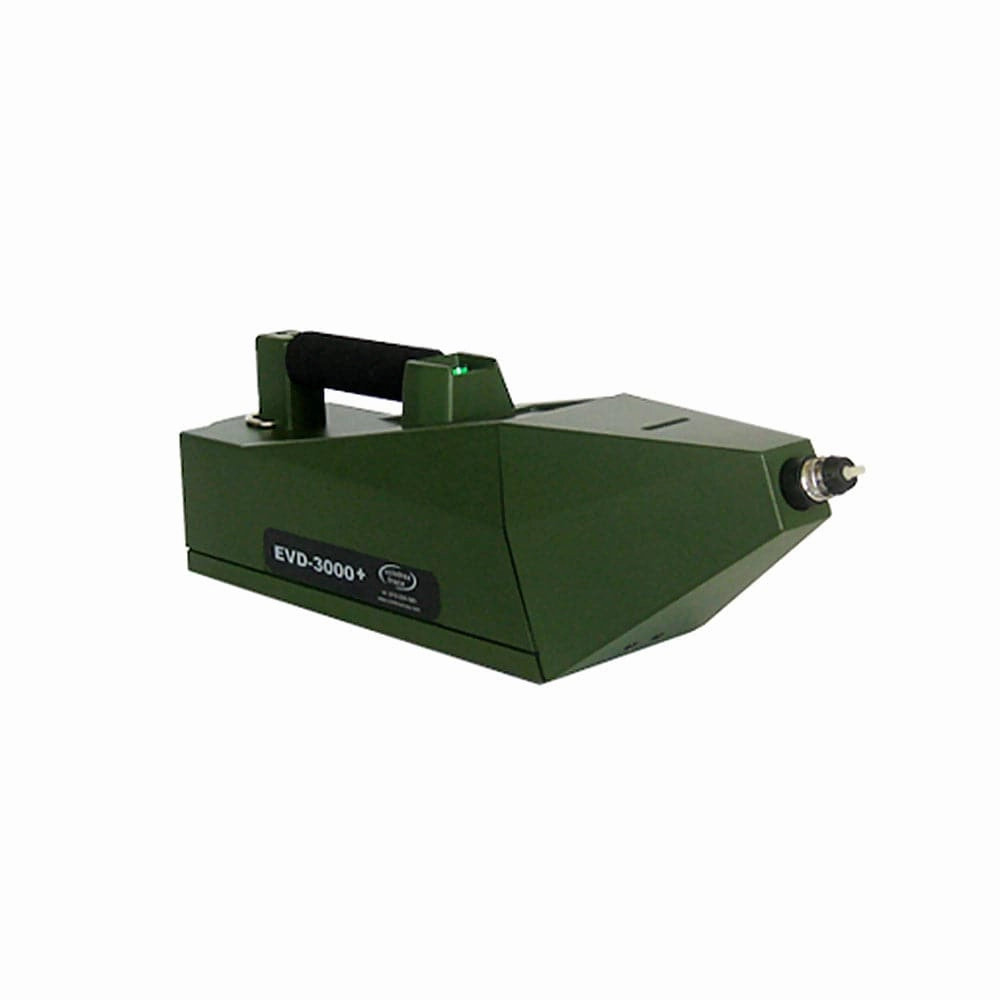

The Scintrex Trace EVD-3000 Trace Detector is an advanced explosive detection unit that detects trace amounts of plastic & high vapor-pressure explosives such as C-4. PETN. Semtex. RDX and nitroglycerine. Using thermo-redox technology. this explosive detector can analyze either trace or vapor samples and delivers clear results in less than 10 seconds with the push of a button. No carrier gas or radioactive source is needed to operate the system which increases the safety of the end-user as well as reducing ownership costs.
Portable Explosive Detector EVD-3000 Features
- Rapid. accurate & easy to read results
- Self-calibrating
- Lightweight & field-ready
- No radioactive source
HandHeld Explosive Detector Specifications
Detector: Thermo-redox
Analysis Time: < 10 seconds
Explosives Detected: C-4. TNT. dynamite. PETN. Semtex. RDX. black powder. NG and all ICAO taggants
Sensitivity: Particulates: nanogram Vapors: low parts-per-billion
Sample Collection: Particulates and vapors
Warm-up Time: None. after one minute start
Alarms: LED indicator lights. audible alarm
Power Supply: 12 V DC rechargeable battery
Input Voltage: 90-264 VAC. 50-60 Hz universal switching
Unit Weight: 2.8 kg (6.2 lbs.) with battery
Unit Dimensions: 50.0 x 14.0 x 11.0 cm (L x W x H) 19.9 x 5.5 x 4.3 in.
Operating Temp: 0o to 55oC (32o to 131oF)
Storage Temp: -5o to 65oC (23o to 149oF)
Communication: RS-232 serial output port
Data Storage:1.000 retrievable data records
Options: 12 V AC adapter. external battery. printer
