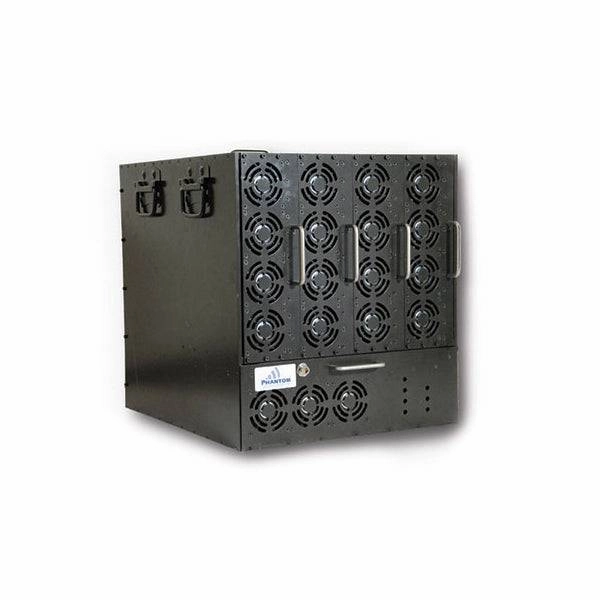

The Tactical Jammer's high power jammer is designed to block FM communication.The Tactical Jammer uses state-of-the-art technology for maximum performance.
The unit is controlled by Microprocessor for DDS programming using unique modulation technique based on mixed signal for maximum jamming efficiency. Each Tactical Jammer transmits a unique noise signal. which creates a firewall between the transmitter and its receiver.
The jamming signal is being generated by the DDS. which results a very high sweeping rate along the bands. hence creating high RF density in each part of protected frequency band.
Jamming radius of RCJ HF-VHF-UHF depends on several conditions such as transmitter frequency and output power. distance to receiver and obstacles in between. System modularity allows flexible usage in different applications.
The system uses Broadband Directional Antennas for selective jamming area and can be used with long-wire. Omni-directional antennas for 360 jamming.
SYSTEM FEATURES
There are 5 modes of jamming operation:
1. Sweep Mode
Jamming the whole frequency band at an ultra-fast
Speed continuous sweeping.
2. Spot Mode
Jamming simultaneously of 36 frequencies from a list
3. Open Communication Window
Allows open communication from 10 pre-programmed options.
Thus frequencies can be changed in factory when customer needs.
4. Barrage Mode
Sweeping between up to 4 bands
5. Memory Jam
Allows jamming of up to 36 channels from jammer memory
- Designed to block HF-VHF-UHF communications
- Adjustable output power 3 dB Steps. 150W. 300W. 600W. 1.200 W.
- Separate switch ON/OFF and switch Operation Modes
- Built-In Test Equipment (BITE) for performing and notifications of system performance and parameters
- Designed for vehicle installation
- Radiation protector to protect operator/s from jamming signals
TECHNICAL SPECIFICATIONS
RF Characteristics
| Output Power | Up to 5.000 Watts |
| Jamming Range | Depends on field conditions |
| Internal Modulation | FM Hopping Frequency. Sweep. White Noise. Tone |
| Signal Source | DDS Digital Direct Synthesizer |
| Power Supply | 110/220 VAC |
| Remote Control | ON/OFF |
| Antenna | Rotate antenna (optional) |
| Power Amplifier Protectors | Full VSWR protector Over Heat Thermal protector Over Current protector |
Jamming Frequency Range
| Frequency Band | 20-500MHz |
| Air Interface Standards | HF-VHF-UHF |
Physical Data
| Dimensions | 500 x 430 x 676 mm 19 x 14U (3 Drawer) |
| Weight | Approx. 120Kg |
Environment of operation
| Operating Temp | -10C 65C |
| Humidity | 5% 80% |
*Specifications are subject to change without prior notice
