Product Details
＋

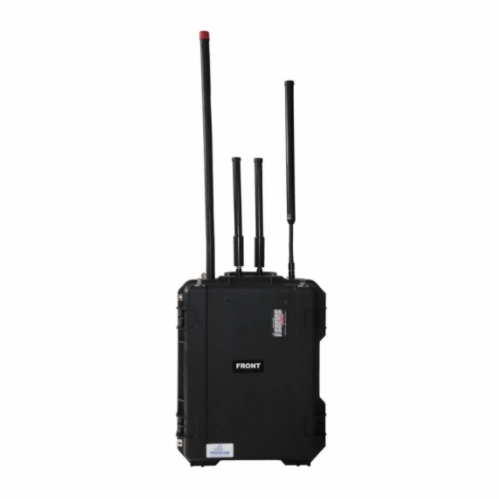

The Upgraded Manpack Jammeris an upgraded Manpack. designed to neutralize and jam IED's communication during special units' activity in the field. The MP809 uses state-of-art technology for maximum performance.
The unit is controlled by Microprocessor for DDS programming. The Upgraded Manpack Jamme transmits white noise signal which cuts off RF communications at 915. 1.600. 2.400 & 5.800 MHz Bands.
The unit protects against using of any type of WLAN in 2.4 & 5.8 GHz. ISM Band in 900 MHz and GPS. Protection jamming radius can reach up to 1 Km away with muting ratio of 4:1.
OPERATIONAL SCENARIO
- System status report via TCP/IP including FWD. VSWR. TEMP
- ON/OFF per Band via TCP/IP
- Status LED
- Wired remote control unit
- Thermal protection
- Low battery indicator
- Programming via TCP/IP per band parameters including Span. Steps & Sweeping Rate
- MIL-STD Connectors
TECHNICAL SPECIFICATIONS
RF Characteristics
| Total Output Power | Up to 500W |
| Internal Modulation | FM Hopping frequency |
| Signal Source | DDS |
| Power Supply | 110/220 VAC |
| Modules Per Unit | 11 |
| Remote Control | LAN Port / TCP/IP Protocol |
| Antennas | External Omni-Directional/Directional Including VSWR protection |
Jamming Frequency Range
| Frequency Bands | According to customer requirements |
| Air Interface Standards | Digital: ISM. GPS. WiFi2.4. WiFi5.8 |
Physical Data
| Dimensions | Pelican 1610 |
| Weight | Approx. 40Kg |
Environment of operation
| Operating Temp | -20C 55C |
| Humidity | 5% 95% |
*Specifications are subject to change without prior notice
*Ver 001.08.17
