Yates905WT Spec Pak Wind Turbine Lifting Bridle System

905WT Spec Pak Wind Turbine Lifting Bridle System |Wind Turbine Lifting Bridle System

New Spec Pak Spreader Bar was designed for Wind Turbine rescue techniques that require horizontal transfer of a patient. Spreader Bar is connected to chest D-rings on Spec Pak. This technique utilizes two 4:1 Mini Haul or AZTEC kits attached to the swival on the spreader bar to move a patient in Hub and Nacelle rescue situations. Spreader Bar can also be attached 2:1 Pick off strap of the suspension system to allow for horizontal. semi sitting and semi-vertical (80 degree) positioning of the patient. This system of lifting is useful when longer suspension times are anticipated. reducing the chances of development of suspension syndrome. Lifting bridle is attached to chest mounted D-rings on Spec Pak. Head. and leg strap allows for complete stabilization of the patient without the need of a full litter. Head Strap allows is easilly adjustable with use of 6kN rated Ancra Cam Buckles. Lifting bridle has full strength 22.2 kN rating. All carabiner and connectors are included.SWL/WLL 2.3kN. MBS 23 kN.

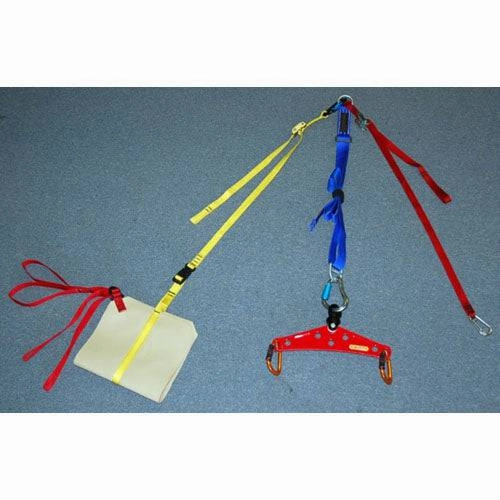

905WT Spec Pak Wind Turbine Lifting Bridle System Complete Bridle Kit Includes:

• Spreader Bar w/swivel and carabiner connectors
• 2:1 Pick off Strap
• Leg Support Section w /Yates-DMM 1835 autolock carabiner.
• Head adjuster strap to adjust patient suspension angle.
• Yates 1162 ANSI carabiner to connect spreader bar to suspension system.\

905WT Spec Pak Wind Turbine Lifting Bridle System Products specifications
