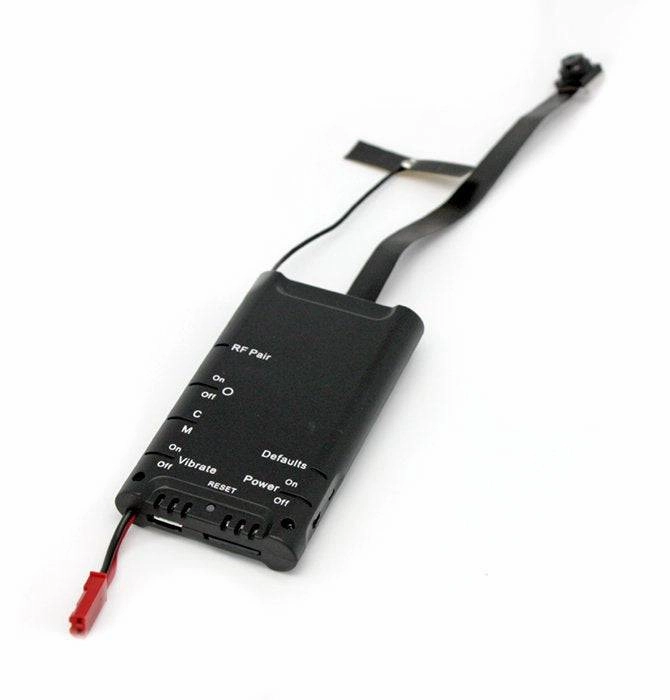

DIY Portable Wi-fi Module

Looking for a unique hidden camera or just like to make your own hidden cameras? The LawMate DIY Wi-Fi module will makes DIY hidden cameras a snap.

Want to make your own wi-fi hidden cameras? Need something just a little bit different than what we have? The DVR272WF lets you create a wi-fi camera in any object or appliance unique to your environment.

Features

CMOS sensor 3MP. 1/3 progressive
Easy use with the inculded remote control
Three resolution to choose from 1080p / 720p / WVGA
IP feature means you can stream live video from anyway and view live
Make your own hidden camera with this tiny DVR
Install the extended hidden camera in any way you like
View. operate. take pictures and playback on our free PV Cam Viewer app
Long recording time up to 300 mins with 16G card
Battery powered and easy to install or use just the way it is
LawMate part number PV-DY10i

Take your own appliance or household object and add a Wi-fi camera! Perfect for Law Enforcement. Loss preventionor any hobbyist.

Specification

Built-in image sensor 1/3 progressive CMOS sensor
WIFI Built-in WiFi Module(IEEE 802.11b/g/n)
Memory type Micro SD Card ( Support SDHC max=32GB)
Date/Time Table YYYY/MM/DD. HH:MM:S
Power Input DC 5V
Power Consumption 450mA-500mA(WIFI OFF)(WIFI ON 60mA)
Standby Consumption 8-8.5mA
Charging Time 240 min(800mA)
Battery Input DC 3.7V / 2200 mA Lithium battery
Battery Life: 180min(1080P / WIFI ON) 210min(1080P / WIFI OFF) 195min(720P / WIFI ON) 225min(720P / WIFI OFF) 210min(WVGA / WIFI ON) 240min(WVGA / WIFI OFFl
WIFI Built-in WiFi Module(IEEE 802.11b/g/n)
Photo Capability(APP) 2M(1920*1080)
Frame rate Up to 30 fps
Sensor resolution 2304x1536
Sensor sensitivity 3.3 Lux @ F 2.0
Lens F/No. F 3.2
Focal Length 4mm
Angle of View 66
H.264. JPEG
File Format MOV. JP
Video recording mode Auto/Manual/Motion Detection
Recording Capability 1920x1080. 1280x720. 848x480
