- 127cc 4-Cycle Briggs & Stratton Engine
- Dual Direction Tines
- Self-Propelled Steel Wheels
- 17 Tilling Width

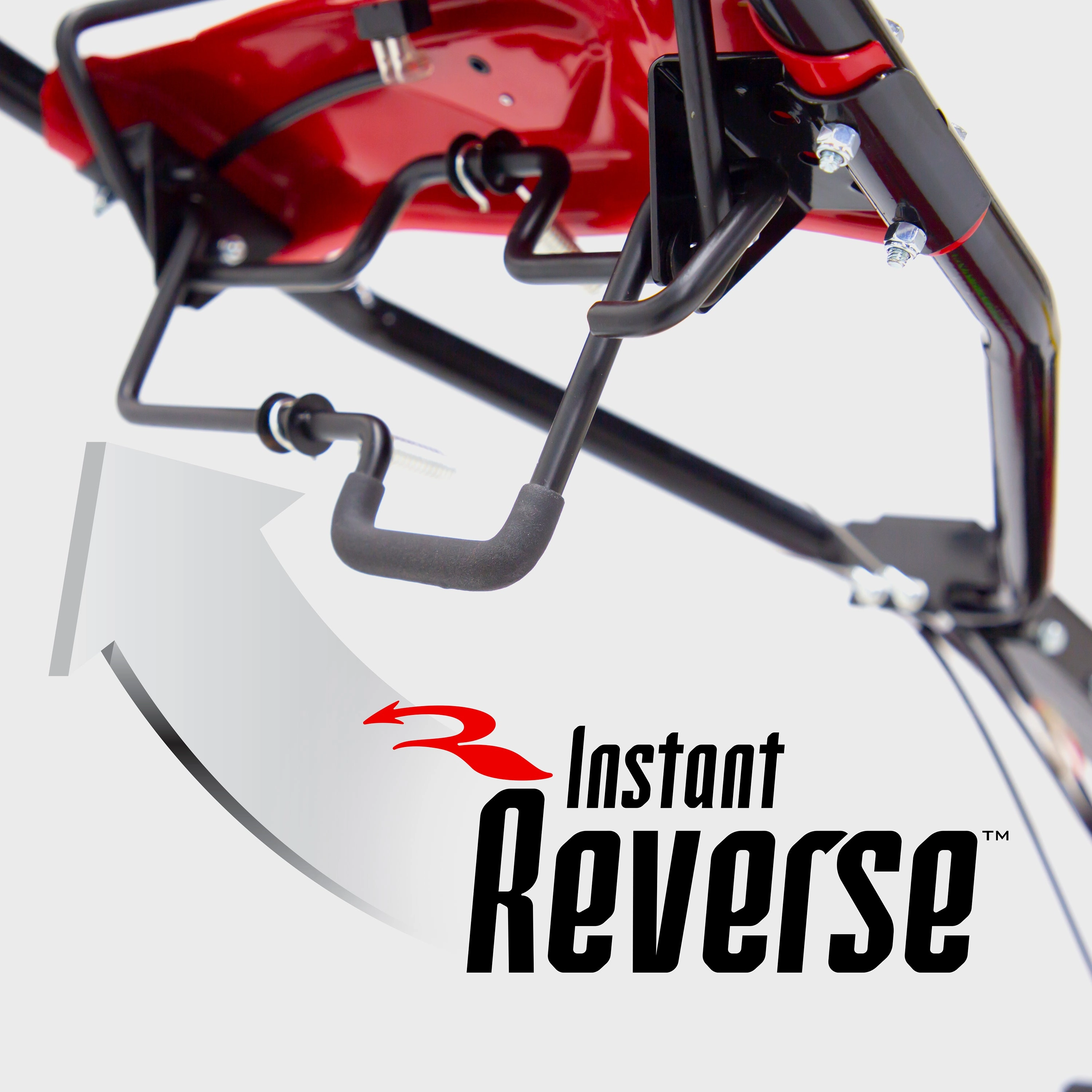

- Instant Reverse

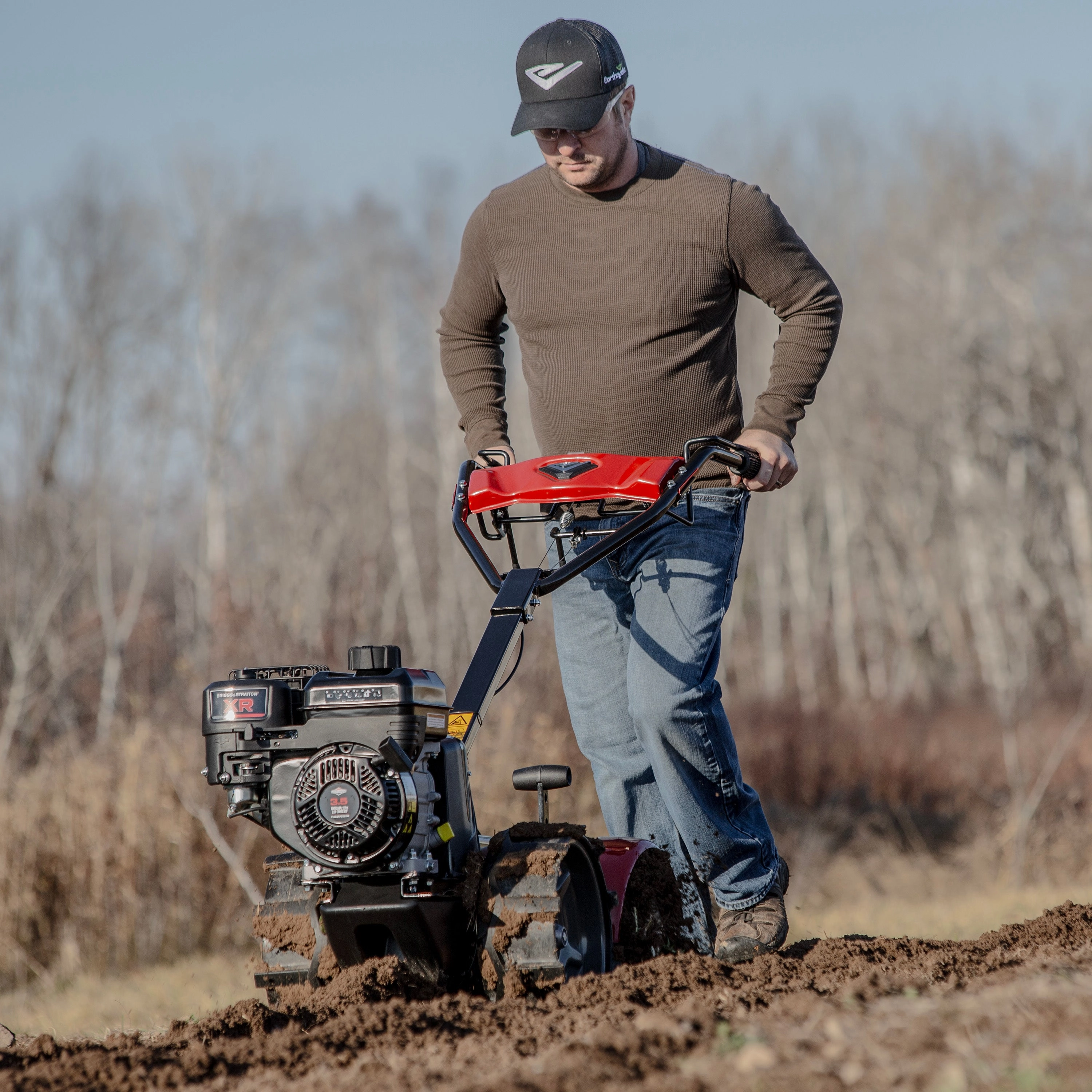

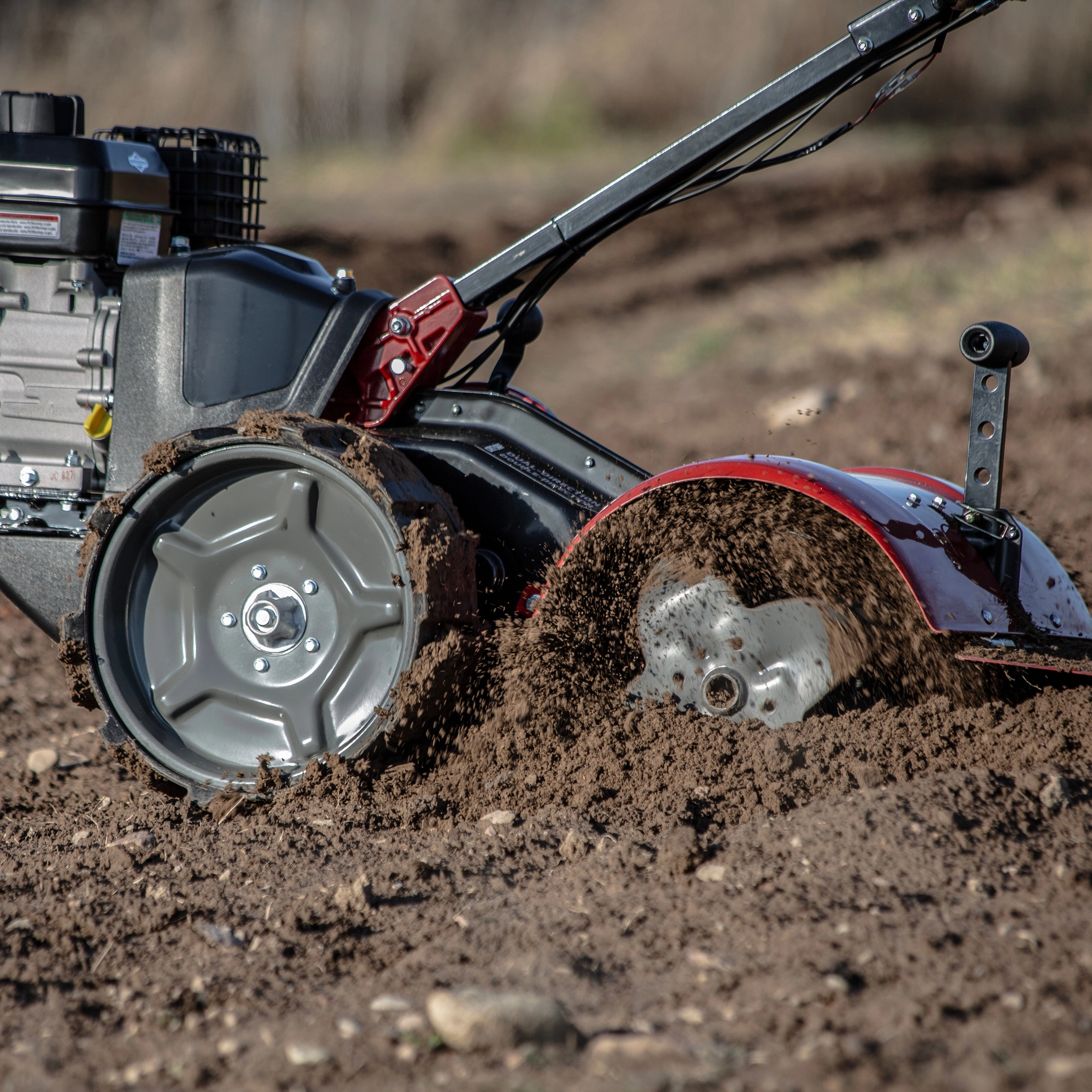

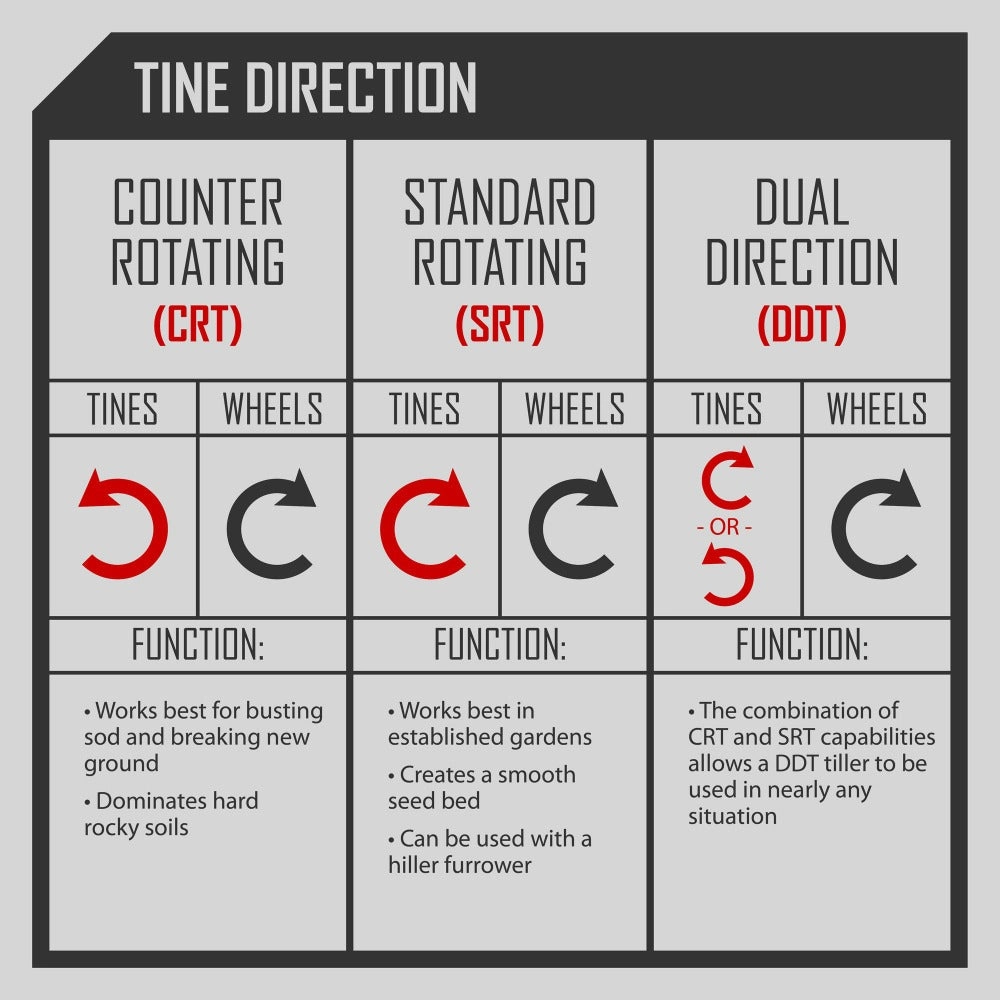

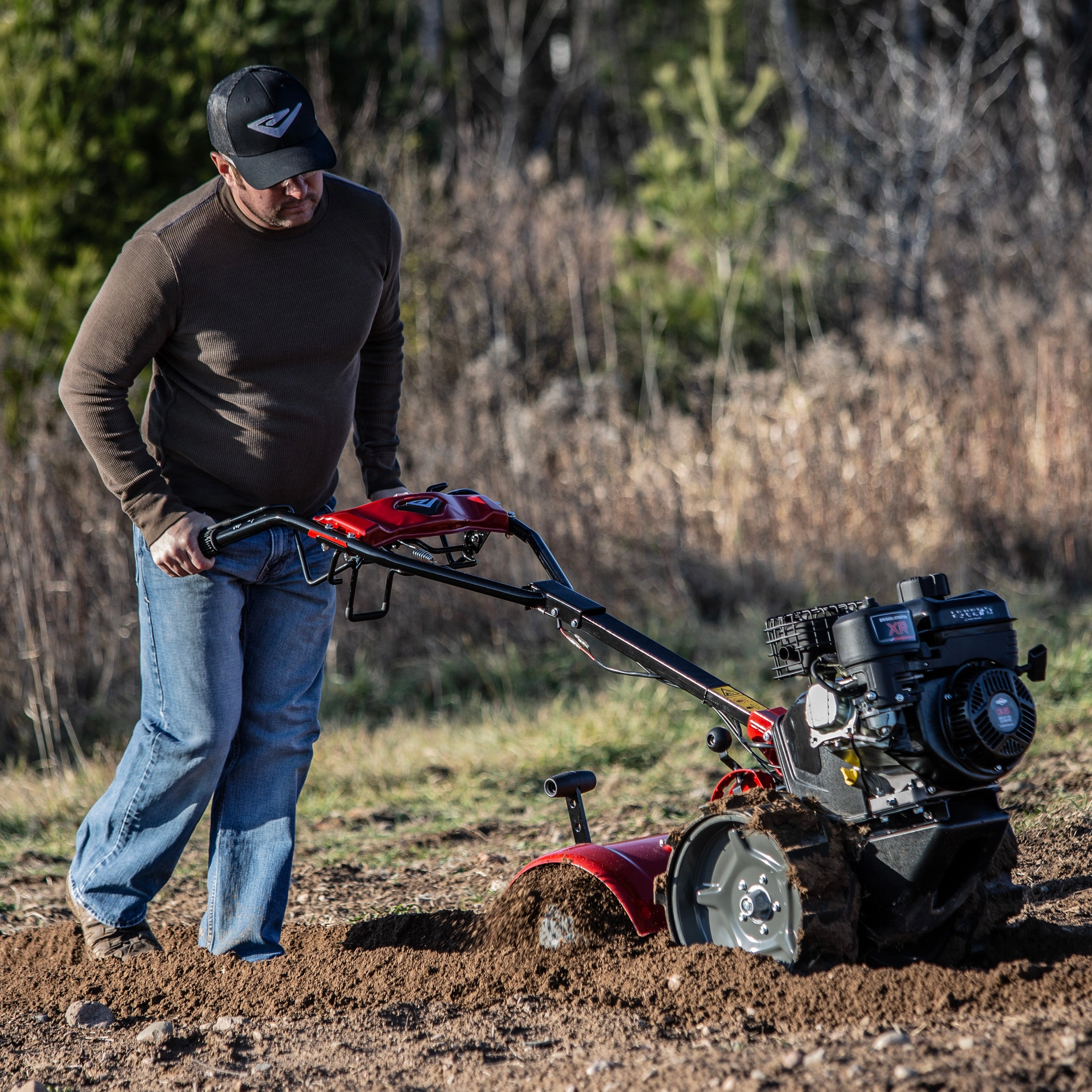

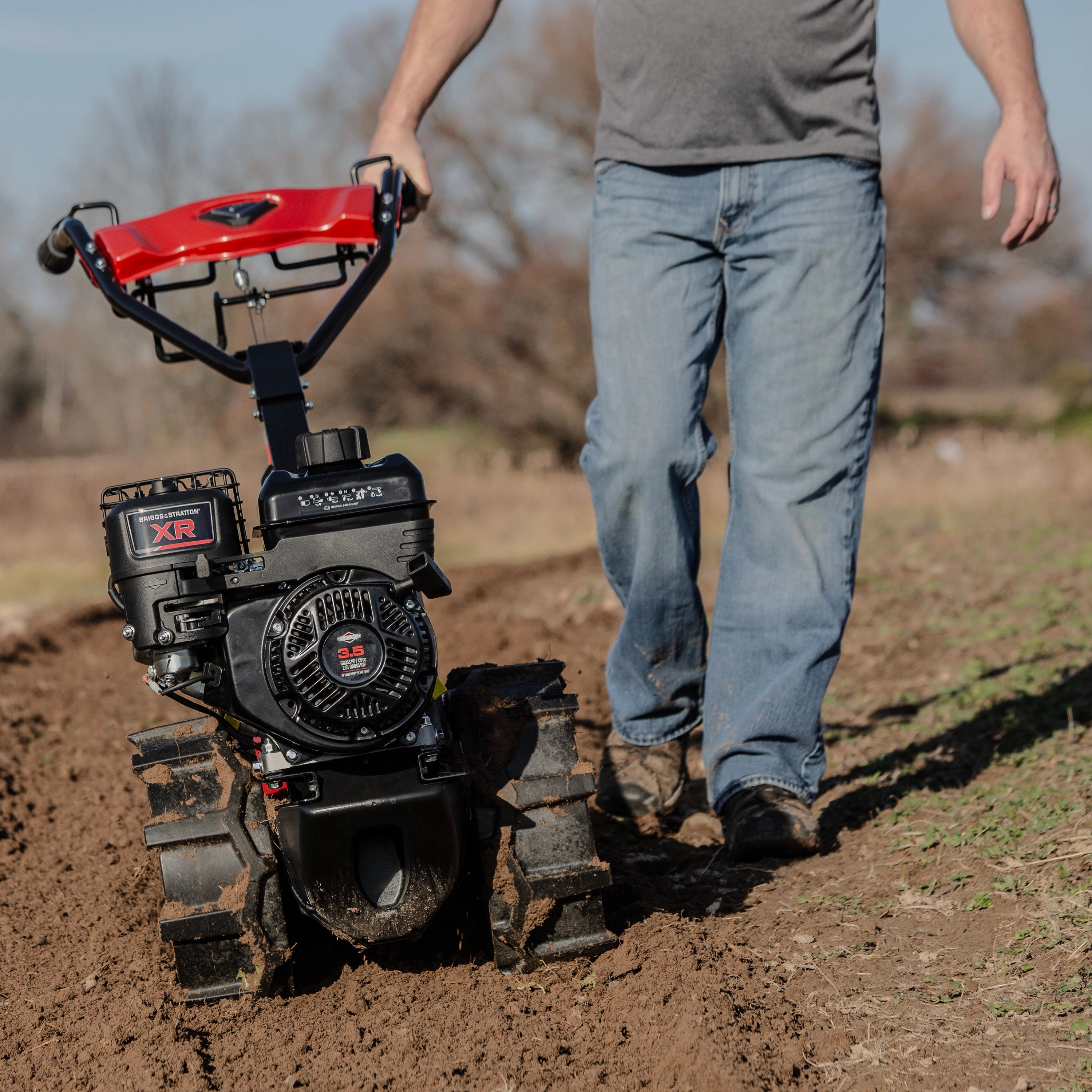

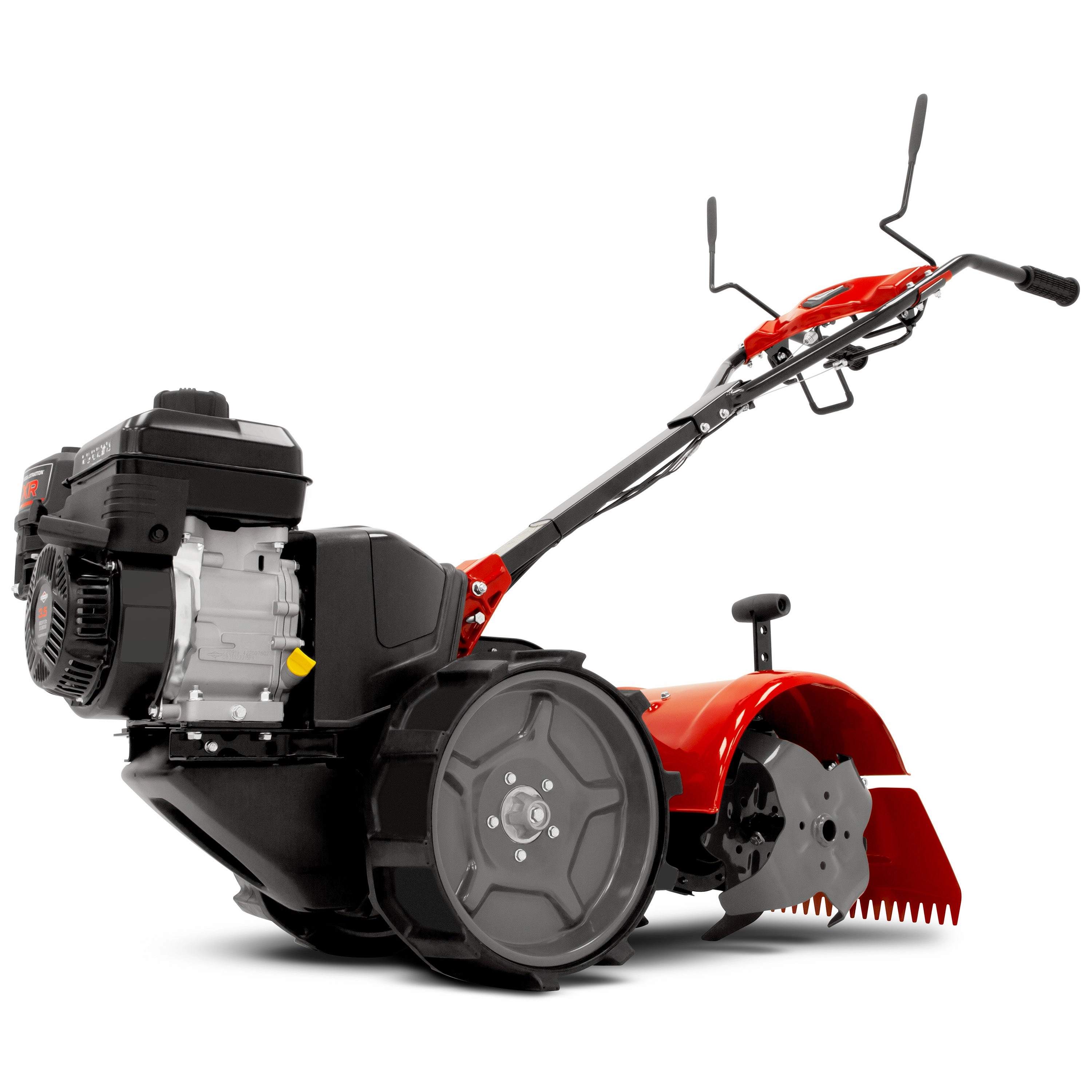

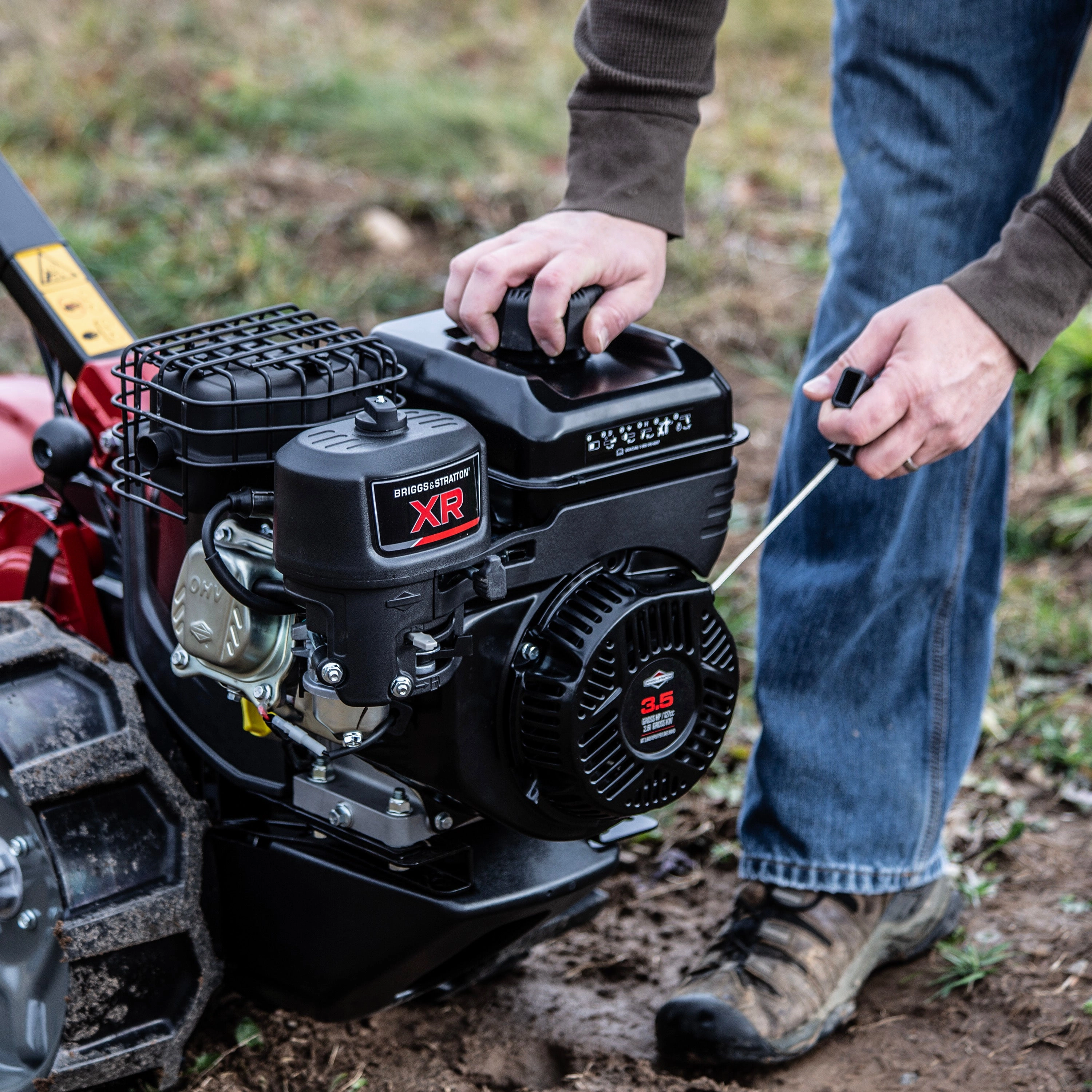

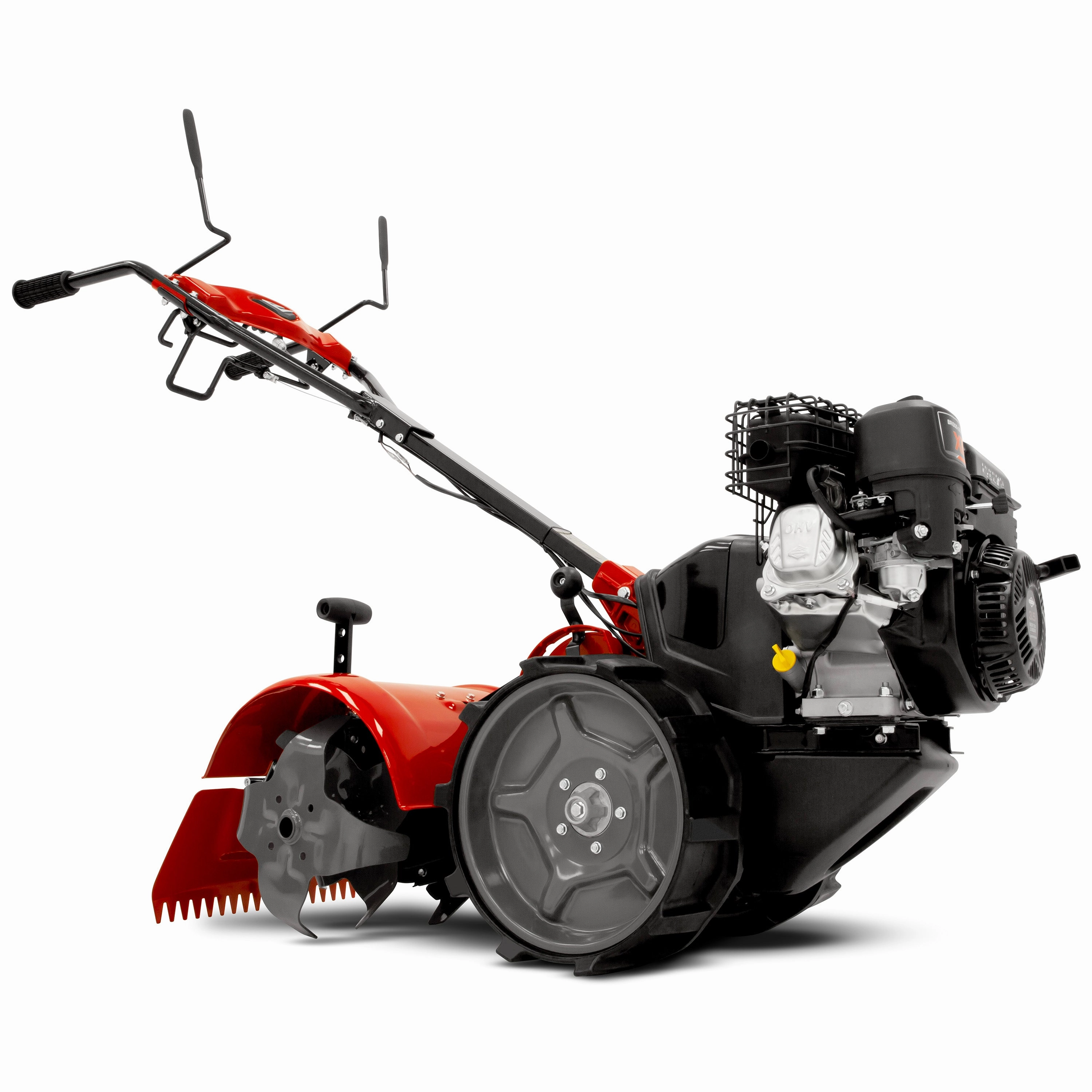

The Earthquake Pioneer features a 127cc Briggs & Stratton engine that delivers optimal power to the rear-mounted tines for impressive soil turning capability without sacrificing maneuverability. Dual Direction tines allow the Pioneer to bust through sod in CRT mode. and polish the perfect seed bed in SRT mode. Featuring instant reverse. a simple pull of a handle allows you to back up without shifting gears. Dual control handlebars and a compact footprint make maneuvering in tight spaces a breeze and allow for one handed operation. Super-wide airless tires with steel rims never go flat and provide incredible traction. The Pioneer Rear Tine Tiller is backed by a 5-year product. 2-year engine warranty. Patent Pending Design.
Specifications
| Specification | Details |
|---|---|
| Model Number | 46059 |
| Owners Manual | 46059 Manual |
| Certifications | EPA. CARB. ICES-002 |
| Drive System | Bronze Gear Driven |
| Engine Brand | Briggs & Stratton |
| Engine Displacement | 127cc |
| Engine / Motor Torque | 5.5 FT-LBF @ 3600 RPM |
| Engine Type | 4-Cycle |
| Fuel Tank Capacity | 0.50 GAL |
| Fuel Type | 87 Octane Unleaded Gasoline |
| Gear Ratio | 18:1 |
| Gross Weight | 165 LBS |
| Net Weight | 160 LBS |
| Number of Speeds | 1 |
| Number of Tines | 4 |
| Recommended Oil | SAE 10W-30 |
| Oil Capacity | 20.29 FL-OZ |
| Self Propelled | Yes |
| Starting System | Recoil |
| Tilling Depth | 11.25 |
| Tilling Width | 17 |
| Tine Diameter | 11.38 |

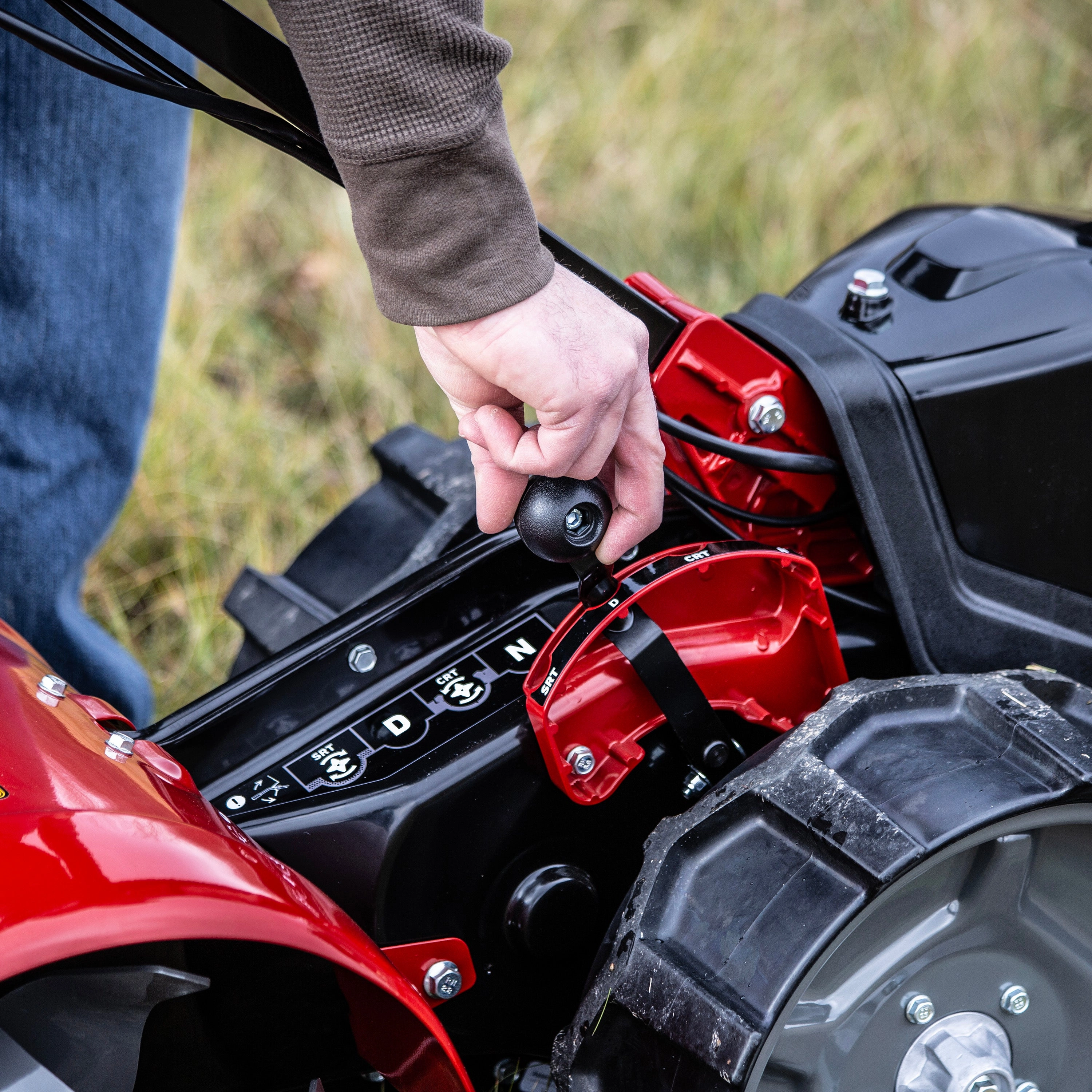

| Tine Rotation | Dual Direction: SRT & CRT |
| Tine Speed | 202 RPM |
| Tine Torque | 99 FT-LB |
| Tire Diameter | 11.8 |

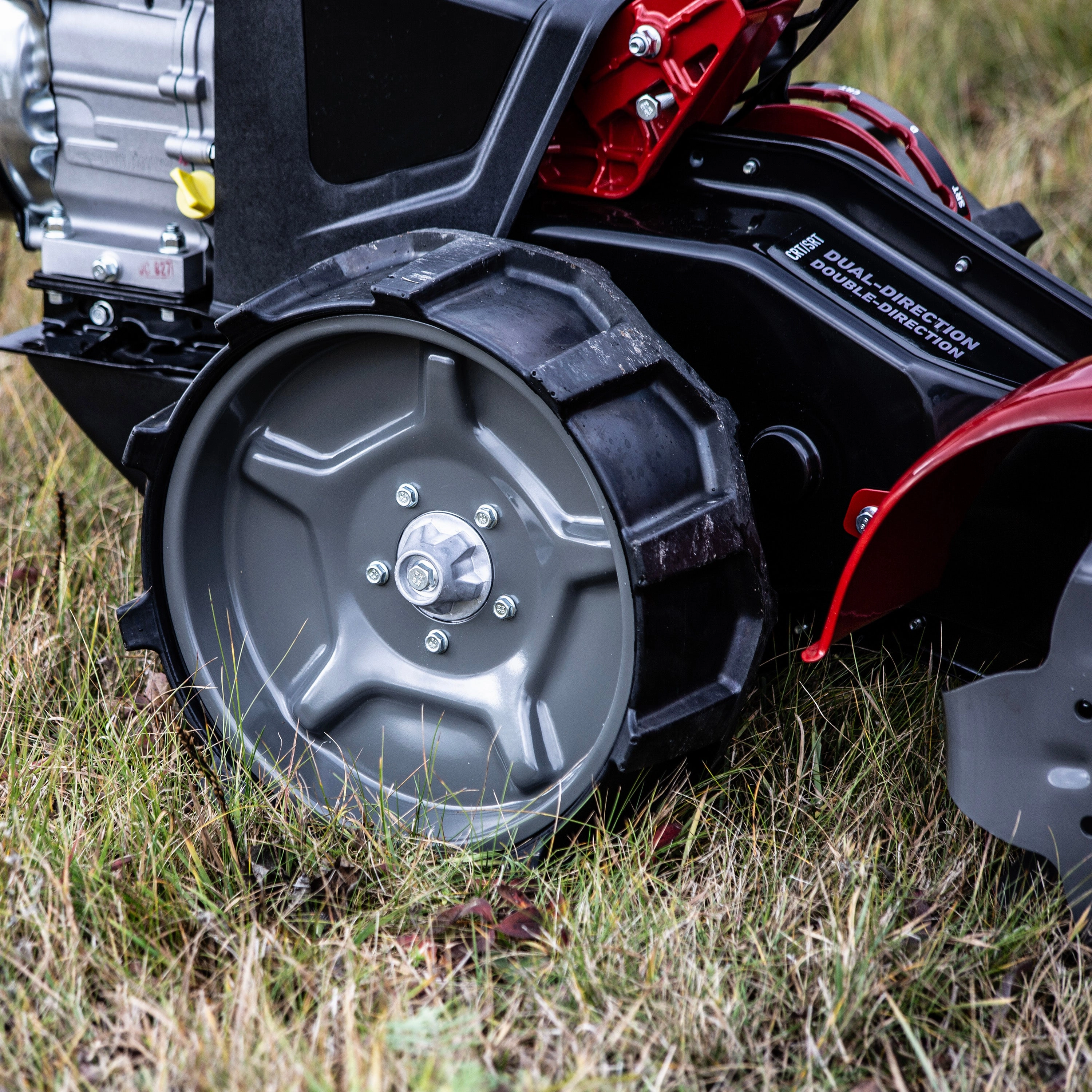

| Tire Material | Steel Wheel. Airless Rubber Tire |
| Tire Width | 5.3 |
| Warranty | 5-Year Product. 2-Year Engine Limited |
| Patent # | Patent Pending |
